Remove/Install Rear Seat Backrest Cover - AR91.18-P-1870LW
Model 205.0/1
except code 287 (Through-loading feature)
| Remove | |||
| 1 | Remove seat backrest | AR91.12-P-1620LW | |
| 2 | Remove all head restraint guides of backrest | AR91.16-P-1775LW | |

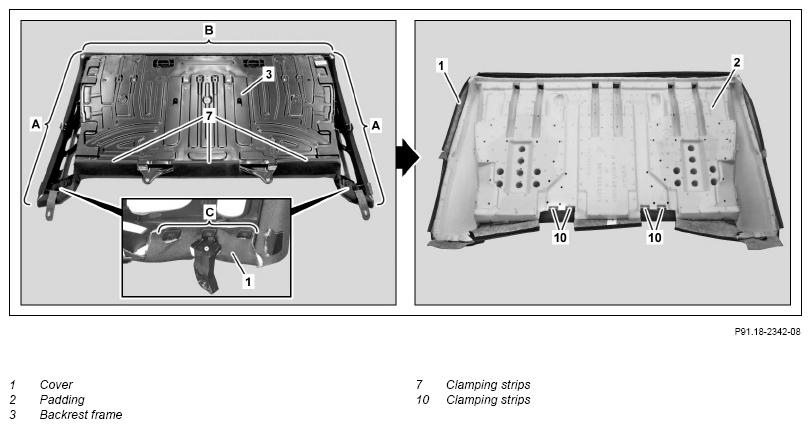

| 3 | Unhook cover (1) from backrest frame (3) (areas A, B and C) | Fig 1 | |
| 4 | Unhook terminal strips (7) | Fig 1 | |
| 5 | Remove backrest frame (3) | ||
| 6 | Unhook terminal strips (10) | Fig 1 | |
| 7 | Slip outer cover (1) over padding (2) | ||

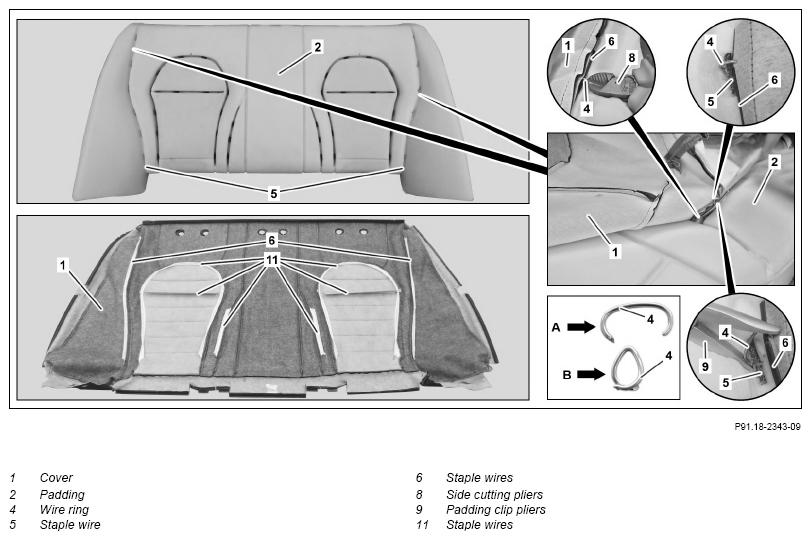

| 8 | Use padding (2) and remove wire rings (4) at staple wires (5) of padding (2) with side cutting pliers (8) | Carefully remove residues from wire rings (4). Otherwise, the padding (2) and/or the cover (1) can be damaged. |
|
| 9 | Unclip staple wires (11) from padding (2) | ||
| 10 | Remove cover (1) from padding (2) | ||
| 11 | Remove staple wires (6, 11) from cover (1) | When replacing the cover (1). | |
| Install | |||
| 12 | Insert staple wires (6, 11) in new cover (1) | When replacing the cover (1). | |
| 13 | Align cover (1) over padding (2) | ||
| 14 | Clip staple wires (11) into padding (2) | ||
| 15 | Fix staple wire (6) on the eyelets with the wire rings (4) on staple wire (5) | ||
| Fig 2 | |||
| 16 | Slip cover (1) over padding (2) and turn over padding (2) | ||
| 17 | Hook in terminal strips (10) | ||
| 18 | Place backrest frame (3) on padding (2) and align | ||
| 19 | Hook in terminal strips (7) | ||
| 20 | Hook cover (1) into backrest frame (3) (areas A, B and C) | ||
| 21 | Install all head restraint guides of backrest | AR91.16-P-1775LW | |
| 22 | Install seat backrest | AR91.12-P-1620LW |
