Remove/Install Charger Feed Socket - AR54.10-P-5109LWH

Model 205.013/047/053/054/147/213/247/253

Shown on model 205.247

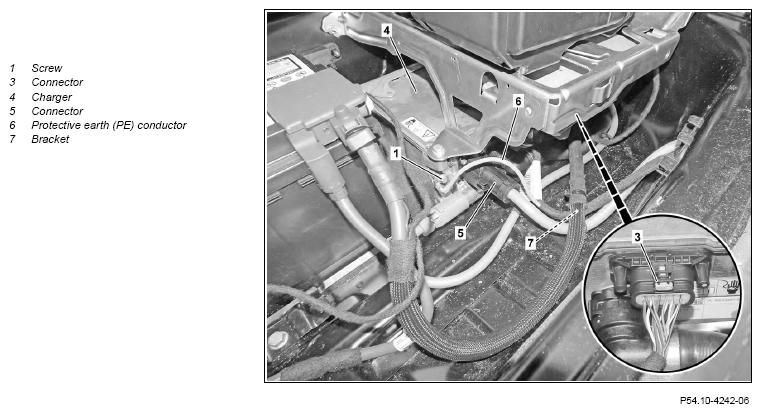

G13021704Courtesy of MERCEDES-BENZ USA

Shown on model 205.213

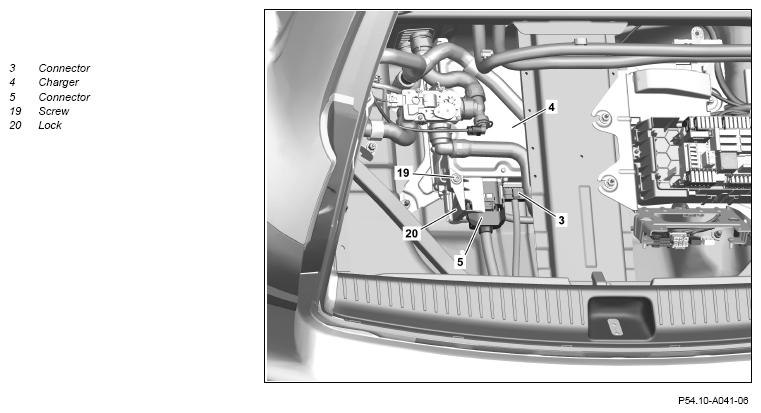

G13021705Courtesy of MERCEDES-BENZ USA

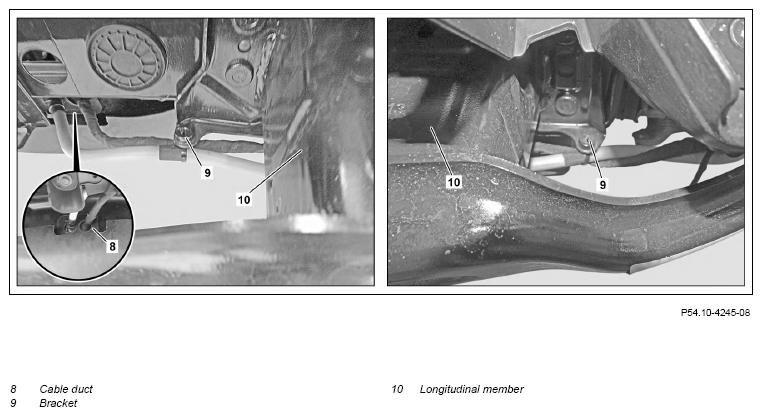

G13021706Courtesy of MERCEDES-BENZ USA

Shown on model 205.247

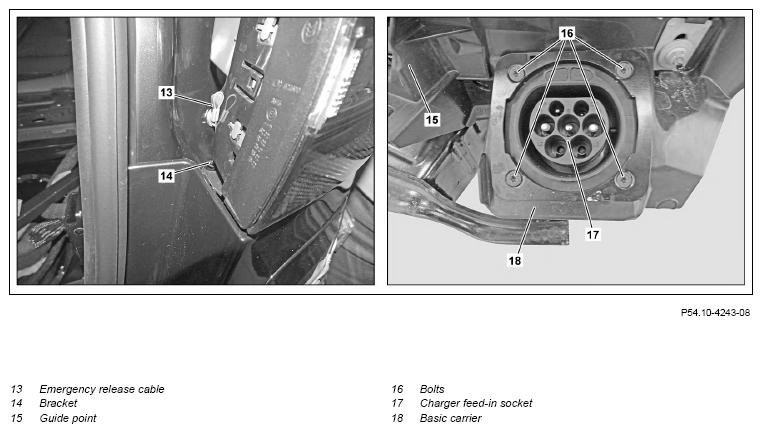

G13021707Courtesy of MERCEDES-BENZ USA

Shown on model 205.247

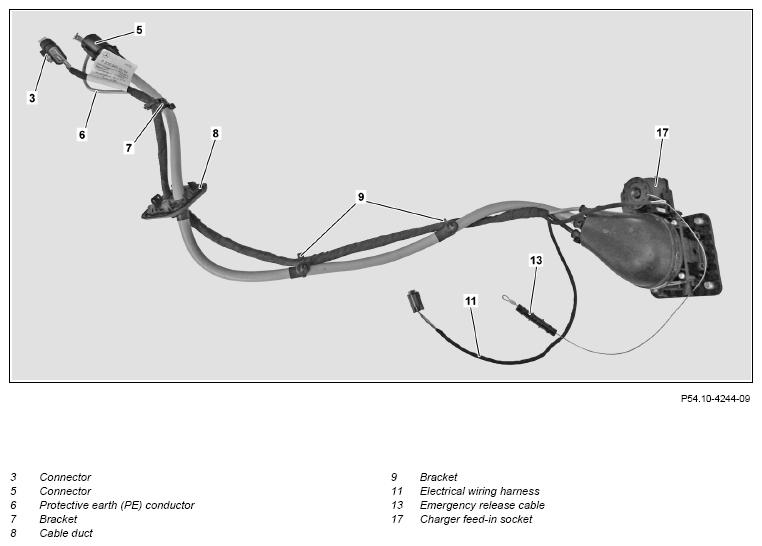

G13021708Courtesy of MERCEDES-BENZ USA

Shown on model 205.247

  Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
  General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   AH00.00-Z-0300-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on battery   AH54.10-P-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Remove charger feed socket flap.   AR54.10-P-5110LWH
2 Remove rear bumper. Model 205.013/047/053/054/147 AR88.20-P-2200LW
Model 205.213/247/253 AR88.20-P-2200LWS
3 Remove electrical wiring harness (11) from locking element of socket flap.
4 Perform power disconnect of high-voltage onboard electrical system.   AR54.10-P-1150LW
5 Remove high-voltage battery cover.   AR68.80-P-6000LWH
6 Unscrew screw (19) and remove lock (20). Model 205.013/053/054/213/253
7 Release plug (3) and detach from charger (4).
8 Release plug (5) and detach from charger (4).
9 Remove screw (1) of protective ground conductor (6). Model 205.047/147/247
10 Unclip holder (7) on trunk floor. Model 205.047/147/247
11 Unclip cable duct (8) carefully from rear end plate.
12 Unclip holders (9) of wiring harness for charger feed-in socket (17).
13 Guide wiring harness of charger feed-in socket (17) out of vehicle interior.
14 Unhook emergency release cable (13) with holder (14) from basic carrier of bumper.
15 Thread emergency release cable (13) out of guide point (15) on basic carrier of bumper.
16 Remove bolts (16).
17 Unclip charger feed-in socket (17) from basic carrier (18) and remove to right with wiring harness. SPECIAL TOOL Long wedge Fig 1
INSTALLING Install
18 Roughly position wiring harness of charger feed-in socket (17) and clip charger feed-in socket (17) into basic carrier (18).
19 Screw in screws (16). TORQUE SPECIFICATION Bolt, vehicle socket to bracket *BA54.10-P-1015-02F
20 Thread emergency release cable (13) into guide point (15) on basic carrier of bumper.
21 Hook emergency release cable (13) with holder (14) into basic carrier of bumper.
22 Route wiring harness of charger feed-in socket (17) into vehicle interior.
23 Clip in holders (9) of wiring harness for charger feed-in socket (17).
24 Carefully clip cable duct (8) into rear end plate.
25 Clip holder (7) onto trunk floor. Model 205.047/147/247
26 Screw in screw (1) of protective ground conductor (6). Model 205.047/147/247
TORQUE SPECIFICATION Bolt, protective earth conductor to charger
*BA54.10-P-1011-02F
27 Connect plugs (3, 5) to charger (4).
28 Position lock (20) and tighten screw (19). Model 205.013/053/054/213/253
TORQUE SPECIFICATION Screw, high-voltage battery charger cover to on-board charger
BA54.10-P-1033-02F
29 Perform protective ground conductor and insulation resistance test. Model 205.013/053/054/213/253 AR54.10-P-0019-01LHV
Model 205.047/147/247 AR54.10-P-0019-01LWH
TORQUE SPECIFICATION Model 205.013/053/054/213/253 Bolt, potential equalization line to body/charger BA54.10-P-1010-02F
TORQUE SPECIFICATION Model 205.013/053/054/213/253 Bolt, potential equalization line to body BA54.10-P-1007-02F
TORQUE SPECIFICATION Model 205.013/053/054/213/253 Bolt, potential equalization line to high-voltage battery BA54.10-P-1002-02F
30 Install high-voltage battery cover.   AR68.80-P-6000LWH
31 Perform initial startup of high voltage on-board electrical system.   AR54.10-P-1150LW
32 Connect electrical wiring harness (11) to locking element of socket flap.
33 Install rear bumper. Model 205.013/047/053/054/147 AR88.20-P-2200LW
    Model 205.213/247/253 AR88.20-P-2200LWS
34 Install charger feed-in socket flap.   AR54.10-P-5110LWH
HIGH-VOLTAGE BATTERY

Number Designation Model 205.013/053/054/213/253
BA54.10-P-1002-02F Bolt, potential equalization line to high-voltage battery M8 Nm 16
HIGH-VOLTAGE BATTERY

Number Designation Model 205.013/053/054/213/253
BA54.10-P-1007-02F Bolt, potential equalization line to body Nm 16
HIGH-VOLTAGE BATTERY

Number Designation Model 205.013/053/054/213/253
BA54.10-P-1010-02F Bolt, potential equalization line to body/charger M6 Nm -
M8 Nm 16
HIGH-VOLTAGE BATTERY

Number Designation Model 205.047/147/247
BA54.10-P-1011-02F Bolt, protective earth conductor to charger Nm 9
HIGH-VOLTAGE BATTERY

Number Designation Model 205.047/147/247 Model 205.013/053/054/213/253
BA54.10-P-1015-02F Bolt, vehicle socket to bracket Nm 9 5
HIGH-VOLTAGE BATTERY

Number Designation Model 205.013/053/054/213/253
BA54.10-P-1033-02F Screw, high-voltage battery charger cover to on-board charger M6 Nm 8
Fig 1: Identifying Long Wedge (115 589 03 59 00)
G07070400Courtesy of MERCEDES-BENZ USA
