Remove/Install Paneling On Tilting/Sliding Roof - AR77.20-P-0500LW
Model 205.0/1
with code 414 (Sliding sunroof)
Model 213.0/1/2
with code 414 (Sliding sunroof)
Model 253
with code 414 (Sliding sunroof)
Model 293
with code 414 (Sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove sliding roof glass cover | AR77.20-P-2852LW | |
| 2 | Remove water drain rail for sliding roof | AR77.20-P-1997LW | |

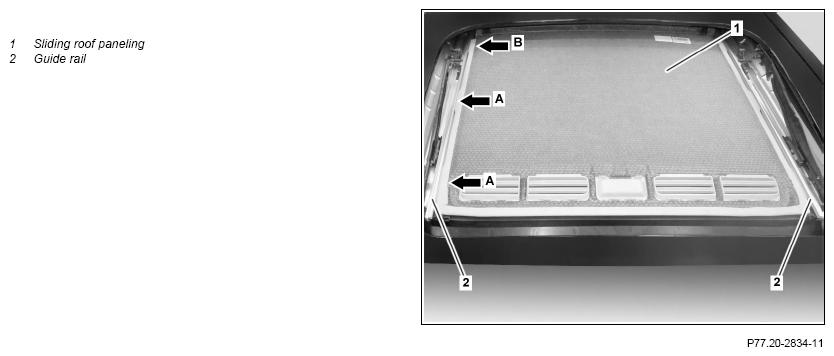

| 3 | Move sliding roof paneling (1) toward front | ||
| 4 | Arch sliding roof cover (1) upward and move out of guide rail (2) together with guide tabs (arrows A) on one side | Do not arch sliding roof paneling (1) too strongly. Damage can otherwise occur. |
|
| 5 | Move sliding roof paneling (1) toward front and move guide lug (arrow B) out of guide rail (2) | ||
| 6 | Move sliding roof paneling (1) out of guide rail (2) on the opposite side and remove | ||
| 7 | Install in the reverse order |
