Remove/Install Water Drain Rail For Sliding Roof - AR77.20-P-1997LW
Model 205.0/1
with code 414 (Sliding sunroof)
Model 213.0/1/2
with code 414 (Sliding sunroof)
Model 253
with code 414 (Sliding sunroof)
Model 293
with code 414 (Sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove sliding roof glass cover | AR77.20-P-2852LW | |

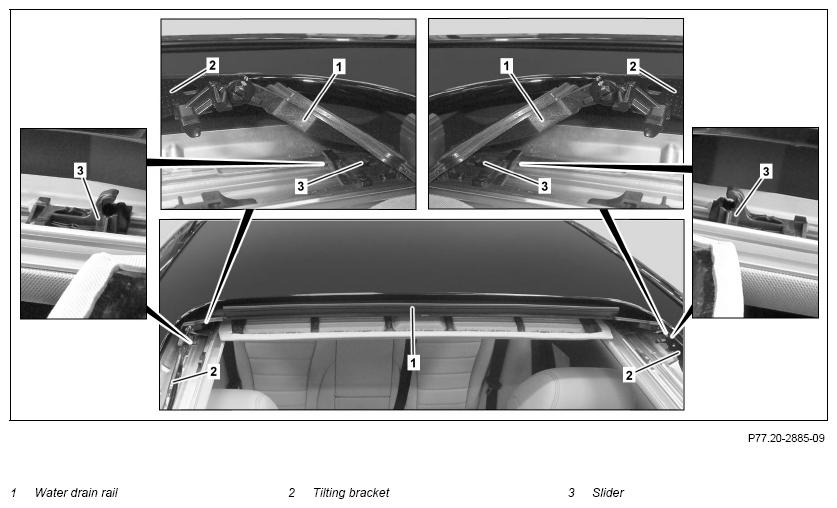

| 2 | Remove water drain rail (1) from tilting brackets (2) on left and right | ||
| 3 | Remove water drain rail (1) from sliders (3) on right and left | ||
| 4 | Check sliders (3) on right and left for damage | If complaint present ↓ Remove sliding roof frame and replace both sliders (3) |
AR77.20-P-3000LW |
| 5 | Install in the reverse order |
