Remove/Install Drive Cable For Panoramic Sunroof Roller Sun Blind - AR77.21-P-0230NKA

Model 117, 156, 176

with code 413 (Automatic panoramic sliding sunroof)

Model 205.0/1/2/3

with code 413 (Automatic panoramic sliding sunroof)

Model 213

with code 413 (Automatic panoramic sliding sunroof)

Model 222

with code 398 (Panoramic roof with MAGIC SKY CONTROL)

Model 222

with code 413 (Automatic panoramic sliding sunroof)

Model 238

with code 413 (Automatic panoramic sliding sunroof)

Model 253

with code 413 (Automatic panoramic sliding sunroof)

Shown on MODEL 176

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove panoramic sliding roof roller sun blind motor	Model 117, 156, 176, 205.0/1/2/3, 222, 253 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)	AR77.21-P-0490NKA
		Model 213 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0490LWE
		Model 238.3 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0490LWO
2	Remove roller sunblind of panoramic sliding sunroof	Model 156, 205.0/1/2/3, 238, 253 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0200NKX
		Model 117, 176 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0215NKA
		Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)	AR77.21-P-0200LF
		Model 222 with code 413 (Automatic panoramic sliding sunroof)
		Model 213 with code 413 (Automatic panoramic sliding sunroof)	AR77.21-P-0200LWE

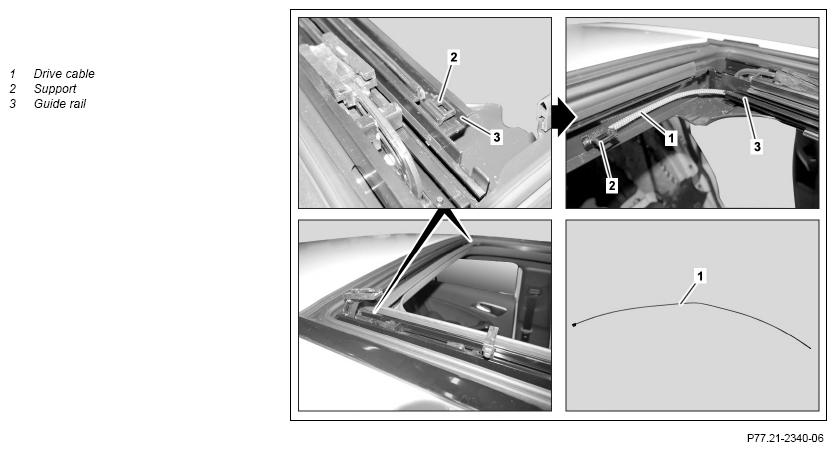

3	Using an assembly wedge, push support) of left and right drive cable (1) toward rear out of guide rail (3)	Long wedge	Fig 1
4	Manually pull drive cable (1) toward rear out of guide rail (3)	Installation:  Guide drive cable (1) through guide rail (3) up to end stop. Then fully install drive cable (1) in front area.
5	Install in the reverse order
