Remove/Install Front Panoramic Roof Roller Sun Blind - AR77.21-P-0200NKX
Model 156
with code 413 (Automatic panoramic sliding sunroof)
Model 205
with code 413 (Automatic panoramic sliding sunroof)
Model 238
with code 413 (Automatic panoramic sliding sunroof)
Model 253
with code 413 (Automatic panoramic sliding sunroof)

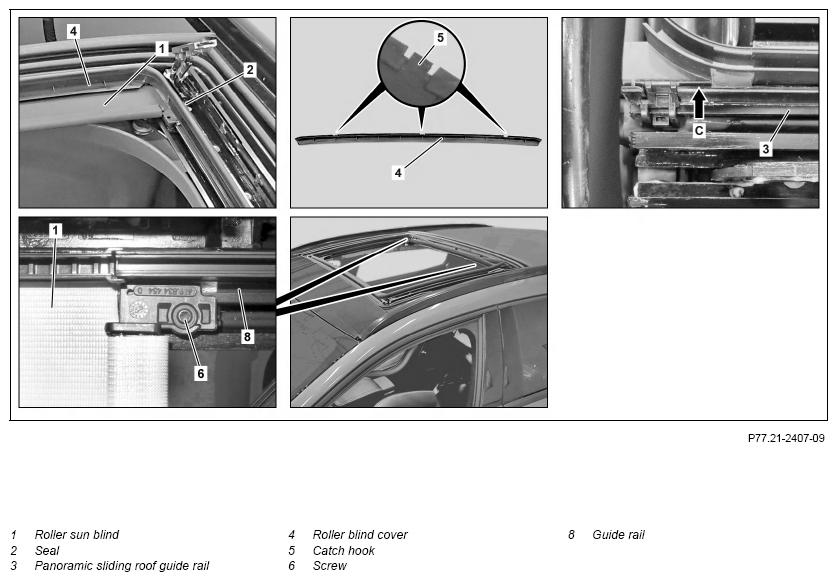

Shown on model 156

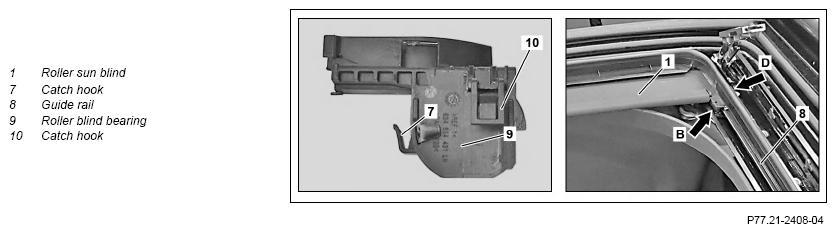

Shown on model 156
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Remove movable glass element | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
AR77.21-P-0500NKA |
| Model 238 with code 413 (Automatic panoramic sliding sunroof) |
AR77.21-P-0503LWO | ||
| 2 | Remove sliding roof seal (2) in area of roller sun blind (1) from panoramic sliding roof guide rail (3) | ||
| 3 | Unclip roller sun blind cover (4) in area of catch hooks (5) and remove | with code 413 (Automatic panoramic sliding sunroof) Model 238 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) 8 catch hooks (5) are located on the roller sun blind cover (4). |
|
| 4 | Unscrew bolt (6) on left and right panoramic sliding roof guide rail (3) | ||
| 5 | Release catch hook (7) and catch hook (10) on right and left roller bearing (9) (arrow B, D) and remove roller blind bearing (1) from panoramic sliding roof guide rail (3) | ||
| Install | |||
| 6 | Clip roller sun blind (1) with left and right roller blind bearing (9) into panoramic sliding roof guide rail (3) | ||
| 7 | Insert catch hook (10) into roller sun blind guide rails (8) on both sides of roller sun blind (1) | Ensure that catch hooks (10) are seated on both sides grooves of corresponding roller sun blind guide rail (8). Otherwise proper function of the roller sun blind (1) is not ensured. |
|
| 8 | Push roller sun blind (1) uniformly toward front at both sides until bolts (6) can be screwed in | ||
| 9 | Tighten screw/bolts (6) | ||
| 10 | Install roller sun blind cover (4) | ||
| 11 | install seal (2) on flange of panoramic sliding roof guide rail (3) | ||
| 12 | Install movable glass element | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
AR77.21-P-0500NKA |
| Model 238 with code 413 (Automatic panoramic sliding sunroof) |
AR77.21-P-0503LWO |
