Remove/Install Condenser - AR83.30-P-6540MRI

Model 205, 253 with Engine 264

Shown on Model 205.4

Courtesy of MERCEDES-BENZ USA

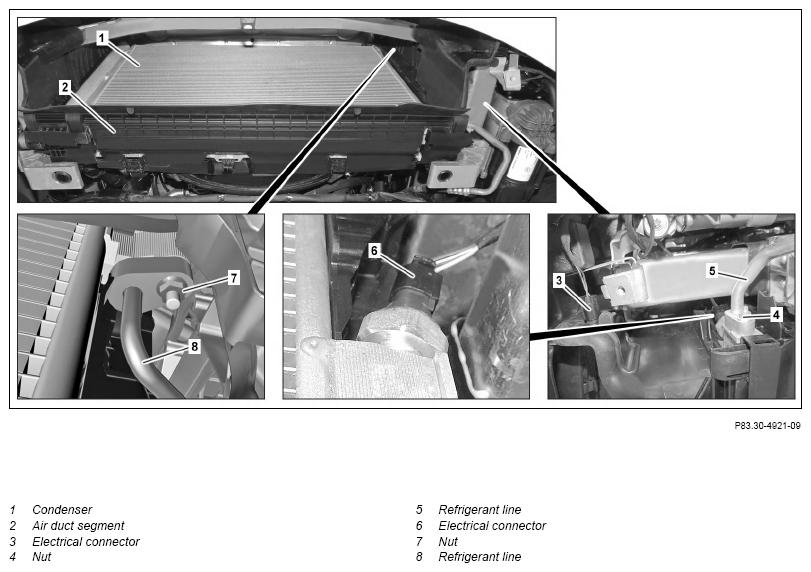

Fig 1: Condenser Components Location - Model 205 With Engine 264

Courtesy of MERCEDES-BENZ USA

Shown on Model 205

Courtesy of MERCEDES-BENZ USA

Shown on Model 205

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234y refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
Topical note	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
Topical note	Notes on installation position of condenser		AH83.30-P-0002-01LW
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Remove/Install
1	Discharge air conditioning system.	Evacuate air conditioning system, refill and check for leak tightness.	AR83.30-P-1760LW
2	Remove front bumper.		AR88.20-P-2000LW
3	Remove additional radiator for low-temperature circuit.	Model 205, 253 with Engine 264 with Code B01 (48V technology)	AR09.41-P-3001MRI

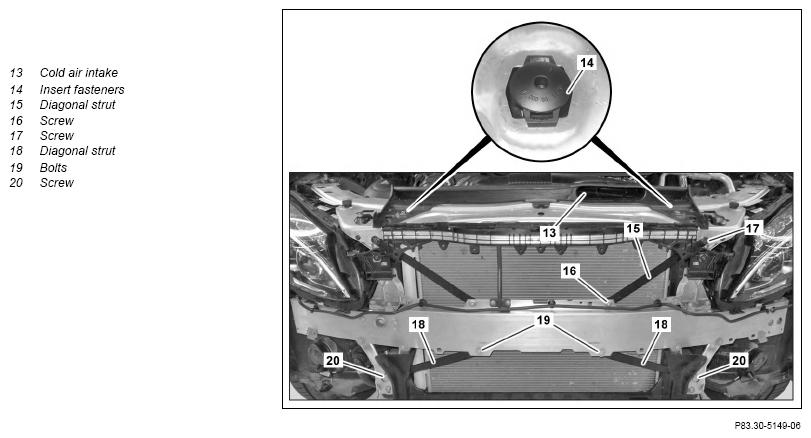

4	Remove cold air intake(13).
5	Remove insert fasteners (14).
6	Remove bolts (16, 17) and remove diagonal strut (15).	Bolt, strut to soundproofing	*BA62.30-P-1004-01H
		Bolt, strut to cross member	*BA62.30-P-1003-01H
7	Unscrew screws (19, 20) and remove diagonal struts (18).	Model 205 with Engine 264 Bolt, strut to soundproofing	*BA62.30-P-1004-01H
		Bolt, strut to cross member	*BA62.30-P-1003-01H
8	Release and disconnect electrical connection (3).
9	Remove lower air duct segment (2).
10	Release and disconnect electrical connector (6).
11	Remove nut (4), remove refrigerant line (5) and seal openings using suitable stop plugs. Compressor oils (specification 362.1)	Replace seal. Moisten sealing ring with compressor oil.	BB00.40-P-0362-01A
		Nut, line to condenser	*BA83.30-P-1002-01Q
		Record plug	Fig 2
12	Remove nut (7), remove refrigerant line (8) and seal openings using suitable stop plugs. Compressor oils (specification 362.1)	Replace seal. Moisten sealing ring with compressor oil.	BB00.40-P-0362-01A
		Nut, line to condenser	*BA83.30-P-1002-01Q
		Record plug	Fig 2

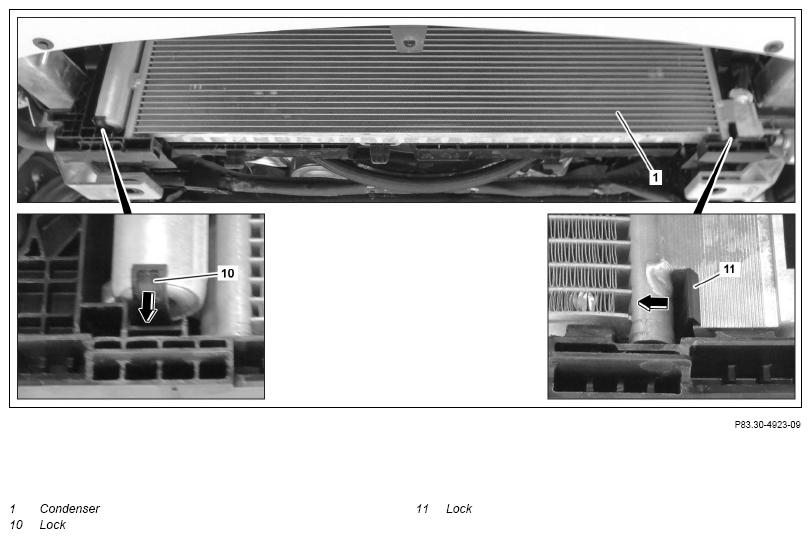

13	Release locks (10, 11) in direction of arrow and route condenser (1) downwards.	Carefully guide out condenser (1). Otherwise condenser (1) or adjacent components may be damaged. Swivel condenser (1) downwards slightly to extend it on the left-hand side.
	Check
14	Check condenser (1) for damage.	If damage is present, ↓ replace condenser (1).
15	Check receiver drier for re-usability.	If one of the following conditions is fulfilled: Vehicle is more than 5 years old, refrigerant is contaminated (color ranges from dark gray to black), refrigerant compressor is jammed or refrigerant circuit has been damaged (e.g. after an accident), ↓ Replace drier cartridge.	AR83.30-P-6521LW
16	Modify refrigerant pressure sensor (B12).	If condenser (1) is to be replaced.	AR83.30-P-5430LW
		Refrigerant pressure sensor to condenser	*BA83.30-P-1006-01Q
17	Install in the reverse order
	Concluding tasks
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
18	Risk of accident  from vehicle starting off by itself when Engine running. Risk of injury  (bruises and burns) resulting from working on the Engine while it is being started or when it is running. Perform Engine test run, check air conditioning system for proper operation while doing so.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
