Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610LWA

Model 205, 213 (except 213.061/261), 253, 293

Advics 4-piston fixed-caliper brake

Model 205, 213 (except 213.061/261), 253

Brembo 4-piston fixed-caliper brake

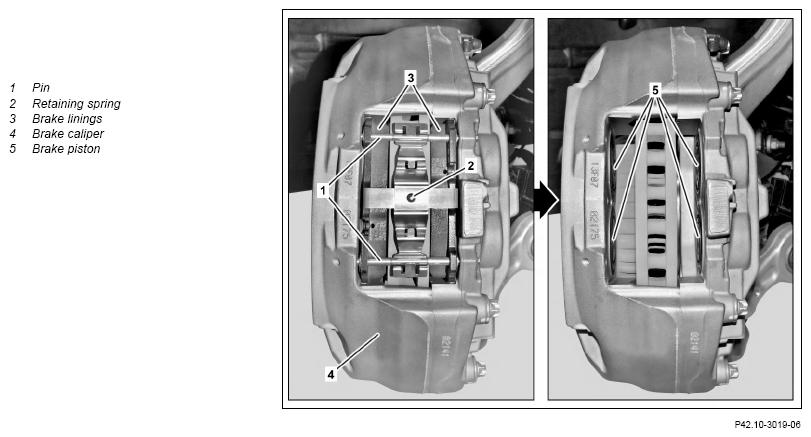

Shown on Brembo 4-piston fixed-caliper brake, on left side of vehicle

Fig 1: Front Axle Brembo 4-piston Fixed-Caliper Brake Linings/Pads Components Location - Model 253 (Shown On Left Side)

Courtesy of MERCEDES-BENZ USA

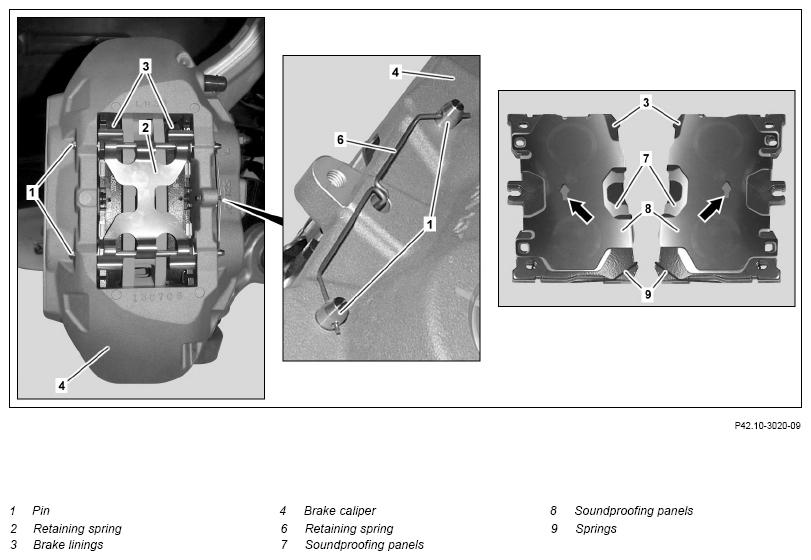

Fig 2: Front Axle Advics 4-piston Fixed-Caliper Brake Linings/Brake Pads Components Location - Model 253 (Shown On Left Side)

Courtesy of MERCEDES-BENZ USA

Shown on Advics 4-piston fixed-caliper brake, on left side of vehicle

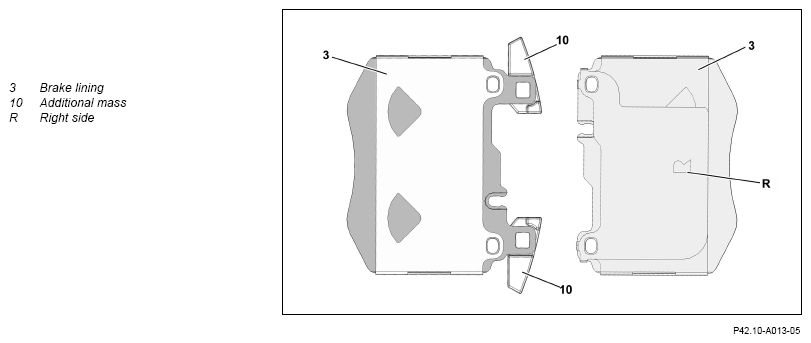

Shown on right brakepad with additional masses

Courtesy of MERCEDES-BENZ USA

	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Topical note	Notes on handling, transport and storage of composite brake discs		AH42.10-P-9406-12LF
Topical note	Notes on repairs to brake system		AH42.00-P-0003-01A
Topical note	Brake fluid notes		AH42.50-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove cover above brake fluid expansion reservoir.
2	Clean area around cap on brake fluid expansion reservoir.	Assembly cleaner	*BR00.45-Z-1028-04A
3	Unscrew cap on brake fluid expansion reservoir and suction off some brake fluid.	This prevents the expansion reservoir overflowing when the brake piston (5) is pushed back. Commercially available devices/tools  Extraction device for brake fluid
4	Remove front wheels.		AR40.10-P-1102A
5	Expose electric line of right front brakepad wear sensor and release and disconnect electrical connector.	Pay attention to the routing of the electrical line of the right front brakepad wear sensor.
6	Unhook safety spring (6) from Bolts (1) with pliers and remove.	Model 205, 213 (except 213.061/261), 253, 293 Advics 4-piston fixed-caliper brake Commercially available devices/tools  Pliers
7	Drive out Bolts (1) using a punch and remove retaining springs (2).	Commercially available devices/tools  Drift
8	Release brakepads (3) from brake pistons (5).	Model 205, 213 (except 213.061/261), 253 Brembo 4-piston fixed-caliper brake The brake linings (3) are bonded and must be replaced due to the loosened bonding.
9	Remove brakepads (3).
10	Pull right front brakepad wear sensor (S10/2) out of backing plate of brakepad (3).	When replacing the brake linings (3) or replacing the right front brake wear sensor. Pay attention to the installation location of the right front brakepad wear sensor.
	Check
11	Check Bolts (1) and retaining spring (2) for damage and condition.	If there is a problem, ↓
		Replace pin (1) or retaining spring (2).
12	Check condition of soundproofing panels (7, 8) and springs (9).	Model 205, 213 (except 213.061/261), 253, 293 Advics 4-piston fixed-caliper brake If there is a problem, ↓ Replace brakepads (3). Soundproofing panels (7, 8), springs (9) and brakepads (3) only available as a set. Only install brakepads (3) approved by Mercedes-Benz as a set.
13	Check brakepads (3) for wear and condition.	Model 205, 213 (except 213.061/261), 253, 293 Advics 4-piston fixed-caliper brake
		Model 293	AP42.10-P-4252EQ
		Model 205	AP42.10-P-4252CAA
		Model 213 (except 213.061/261)	AP42.10-P-4252E
		Model 253 If there is a problem, ↓ Replace brakepads (3). Only install brakepads (3) approved by Mercedes-Benz as a set.	AP42.10-P-4252D
14	Check brake discs for wear and condition.
		Replace brake discs as a complete set only. If there is a problem, ↓ Replace brake discs.	AP42.10-P-4256EW
		Model 205, 213 (except 213.061/261), 253	AR42.10-P-0220EWE
		Model 293	AR42.10-P-0230EQ
15	Check brake caliper (4) with detachable parts for damage.	If there is a problem, ↓ replace corresponding component parts.	AR42.10-P-0070LWA
16	Press back brake pistons (5) using pusher tool.	Secure brake pistons (5) against slipping out using two wedges. Wedge	Fig 4
		Resetting device If the brake pistons (5) can only move sluggishly, ↓ replace brake caliper (4).	Fig 3
			AR42.10-P-0070LWA
	Install
17	Clean contact surfaces of brakepads (3) on brake caliper (4) and brake pistons (5).	Do not use sharp-edged or pointed objects. Otherwise, the brake caliper (4) or the dust boots of the brake pistons (5) will be damaged. Model 205, 213 (except 213.061/261), 253 Brembo 4-piston fixed-caliper brake Completely remove adhesive residue on contact surfaces of brake pistons (5). Assembly cleaner	*BR00.45-Z-1028-04A
18	Insert front right brakepad wear sensor into backing plate of brakepad (3).	When replacing the brake linings (3) or replacing the right front brake wear sensor.
19	Apply brake paste to brake caliper (4).	Model 213 (except 213.061/261), 293Front-axle 4-piston fixed-caliper brake	AR42.10-P-0163-01LW
		MB Plastilube brake paste (brownish)	*BR00.45-Z-1084-06A
20	Remove protective foils from bonding surfaces of brake linings (3).	Model 205, 213 (except 213.061/261), 253 Brembo 4-piston fixed-caliper brake
21	Apply brake paste to brakepads (3).	Brakepads (3) without additional masses (10).
		Model 205, 213 (except 213.061/261), 253 Brembo 4-piston fixed-caliper brake. Model 213 (except 213.061/261), 293 Advics 4-piston fixed-caliper brake Only install brakepads (3) with additional masses (10) when dry. The brake paste to be used depends on the manufacturer of the brake caliper.	AR42.10-P-0162-01LWO
		MB Plastilube brake paste (brownish)	*BR00.45-Z-1084-06A
22	Insert brakepads (3).	When installing brakepads (3) with additional masses (10), install these internally. Install brakepads (3) with right side (R) and left side installation markings externally on the appropriate side. Model 205, 213 (except 213.061/261), 253, 293 Advics 4-piston fixed-caliper brake Ensure correct installation position of soundproofing panels (7, 8). The springs (9) must be fitted to the underside of the brakepads (3). When installed, the arrows on the brakepads (3) must face forward in the direction of travel in the direction of rotation of the brake disc. Only install brakepads (3) approved by Mercedes-Benz as a set.
23	Insert retaining spring (2) and pound Bolts (1) in up to end stops.	Check retaining spring (2) is correctly seated.
24	Hook safety spring (6) in Bolt (1) using pliers.	Model 205, 213 (except 213.061/261), 253, 293 Advics 4-piston fixed-caliper brake Commercially available devices/tools  Pliers
25	Route electric line of right front brakepad wear sensor (S10/2) and connect and lock electrical connector.
26	Install front wheels.		AR40.10-P-1102A
27	Screw down cap of brake fluid expansion reservoir.
28	Operate brake pedal several times until the brakepads (3) make contact with the brake discs.	Firm resistance should be noticeable at the brake pedal.
	Check
29	Check and correct brake fluid level in expansion reservoir.
		Model 205 4-piston fixed-caliper brake	AP42.10-P-4210CAA
		Model 213 (except 213.061/261), 253 4-piston fixed-caliper brake	AP42.10-P-4210B
		Model 293	AP42.10-P-4210F
30	Install cover above brake fluid expansion reservoir.
31	Perform brake test on test stand.
			AP42.00-P-4290BA

Fig 3: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wedge (601 589 07 63 00)

Courtesy of MERCEDES-BENZ USA
