Constant-Velocity Joint Or Rubber Boot On Rear Halfshaft - Removal And Installation - AR35.30-P-0661P
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 166, 170, 171, 172, 203, 204, 207, 208, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 231, 292
| Remove/install | |||
| 1 | Clamp rear axle shaft (37a) in vise j | Check availability of a repair kit for the rubber boot in the EPC (repair possible on certain rear axle shafts (37a) only). |
|
| 2 | Remove clamps (37k) | ||
| 3 | Remove cup seal (37i) from inner joint ring (37c) and outer joint ring (37b) | AR35.30-P-0661-01P | |
| *BF35.30-P-1001-01G | |||
| Model 231 Plugged in shafts Filling capacity for joint housing Rear axle shaft (inserted) Filling capacity for joint housing |
*BF35.30-P-1003-01D | ||
| 4 | Dismantle constant-velocity joint | AR35.30-P-0661-03P | |
| 5 | Press joint hub (37d) off the rear axle shaft (37a) | AR35.30-P-0661-02P | |
| Shell halves (2 ea.) for pressing off and caulking the inner constant velocity joint. | WF58.50-P-3530-01A | ||
| Staking tool for securing joint hub on rear halfshaft | WF58.50-P-3530-07P | ||

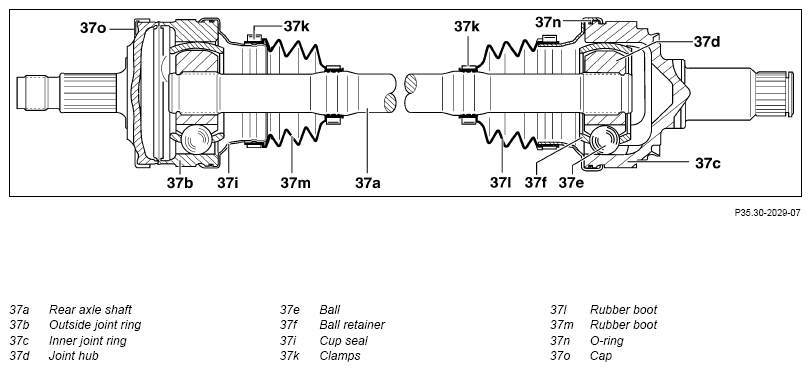

| Fig 1 | |||
| 6 | Remove rubber boot (37l) from opposite constant velocity joint | Only if necessary. |
|
| Check | |||
| 7 | Check constant velocity joints for wear | AR35.30-P-0661-03P | |
| 8 | Install in the reverse order |
REAR AXLE SHAFT, PLUGGED IN SHAFTS
| Number | Designation | Model 166, 170, 171 172, 204, 207, 208, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 246, 292 Plugged in shafts | Model 231 Plugged in shafts | ||
|---|---|---|---|---|---|
| BF35.30-P-1001-01G | Filling capacity for joint housing | Ø82 | g | 80 | 80 |
| Ø95 | g | 100 | 100 | ||
| Ø102 | g | 120 | 120 | ||
| Ø106 | g | 130 | 130 | ||
| Ø112 | g | 140 | 140 | ||
| Ø116 | g | 150 | 150 | ||
REAR AXLE SHAFT
| Number | Designation | Model 203.004/006/007/008/016/018/035/045/06 1/065/076/081/084/0 87/092/204/206/207/208/216/218/235/245/261/265/276/281/28 4/287/292/706/707/7 08/718/735/745/747 Rear axle shaft (inserted) | Model 203.004/006/018/03 5/045/061/065/081/0 84/087/092/204/206/218/235/245/261/26 5/281/284/287/292/7 06/718/735/745 Rear axle shaft (bolted on) | |||
|---|---|---|---|---|---|---|
| BF35.30-P-1003-01D | Filling capacity for joint housing | Rear axle shaft (inserted) | Ø95 | g | 100 | - |
| Ø102 | g | 120 | - | |||
| Ø106 | g | 130 | - | |||
| Ø112 | g | 140 | - | |||
| Ø116 | g | 150 | - | |||
REAR AXLE SHAFT
| Number | Designation | MODEL 203.007/207 with TRANSMISSION 716 Bolted-on rear axle shaft except CODE 450, MODEL 203.707 with TRANSMISSION 711, 716 Bolt-on rear axle shaft except CODE 450 | MODEL 203.007/207/707 with TRANSMISSION 722 Bolted-on rear axle shaft except CODE 450 | |||
|---|---|---|---|---|---|---|
| BF35.30-P-1003-01D | Filling capacity for joint housing | Rear axle shaft (inserted) | Ø95 | g | - | - |
| Ø102 | g | - | - | |||
| Ø106 | g | - | - | |||
| Ø112 | g | - | - | |||
| Ø116 | g | - | - | |||
REAR AXLE SHAFT
| Number | Designation | MODEL 203.007/207 with TRANSMISSION 716 Bolted-on rear axle shaft with CODE 450, MODEL 203.008/208 with TRANSMISSION 716 Bolt-on rear axle shaft, MODEL 203.708 with TRANSMISSION 711, 716 Bolted-on rear axle shaft | MODEL 203.007/207 with TRANSMISSION 722 Bolted-on rear axle shaft with CODE 450, MODEL 203.008/016/208/21 6/708 with TRANSMISSION 722 Bolted-on rear axle shaft | |||
|---|---|---|---|---|---|---|
| BF35.30-P-1003-01D | Filling capacity for joint housing | Rear axle shaft (inserted) | Ø95 | g | - | - |
| Ø102 | g | - | - | |||
| Ø106 | g | - | - | |||
| Ø112 | g | - | - | |||
| Ø116 | g | - | - | |||
REAR AXLE SHAFT
| Number | Designation | Model 203.016/216 with transmission 716 Rear axle shaft (bolted on) | Model 203.076/276 Rear axle shaft (bolted on) | |||
|---|---|---|---|---|---|---|
| BF35.30-P-1003-01D | Filling capacity for joint housing | Rear axle shaft (inserted) | Ø95 | g | - | - |
| Ø102 | g | - | - | |||
| Ø106 | g | - | - | |||
| Ø112 | g | - | - | |||
| Ø116 | g | - | - | |||
REAR AXLE SHAFT
| Number | Designation | Model 203.747 with transmission 716 Rear axle shaft (bolted on) | Model 203.747 with transmission 722 Rear axle shaft (bolted on) | |||
|---|---|---|---|---|---|---|
| BF35.30-P-1003-01D | Filling capacity for joint housing | Rear axle shaft (inserted) | Ø95 | g | - | - |
| Ø102 | g | - | - | |||
| Ø106 | g | - | - | |||
| Ø112 | g | - | - | |||
| Ø116 | g | - | - | |||
