Boot Cap On Joint Ring Removal And Installation - AR35.30-P-0661-01P

WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 166, 170, 171, 172, 203, 204, 207, 208, 209, 211, 212, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 292

REAR AXLE SHAFT

Number	Designation			Model 203.004/006/007/008/016/018/035/045/061/065/076/081/084/087/092/204/206/207/208/216/218/235/245/261/265/276/281/284/287/292/706/707/708/718/735/745/747 Rear axle shaft (inserted)	Model 203.004/006/018/035/045/061/065/081/084/087/092/204/206/218/235/245/261/26 5/281/284/287/292/706/718/735/745 Rear axle shaft (bolted on)
BF35.30-P-1001-01D	Filling capacity	Inner constant velocity joint	g	-	120

REAR AXLE SHAFT

Number	Designation			MODEL 203.007/207 with TRANSMISSION 716 Bolted-on rear axle shaft except CODE 450, MODEL 203.707 with TRANSMISSION 711, 716 Bolt-on rear axle shaft except CODE 450	MODEL 203.007/207/707 with TRANSMISSION 722 Bolted-on rear axle shaft except CODE 450
BF35.30-P-1001-01D	Filling capacity	Inner constant velocity joint	g	100	85

REAR AXLE SHAFT

Number	Designation			MODEL 203.007/207 with TRANSMISSION 716 Bolted-on rear axle shaft with CODE 450, MODEL 203.008/208 with TRANSMISSION 716 Bolt-on rear axle shaft, MODEL 203.708 with TRANSMISSION 711, 716 Bolted-on rear axle shaft	MODEL 203.007/207 with TRANSMISSION 722 Bolted-on rear axle shaft with CODE 450, MODEL 203.008/016/208/21 6/708 with TRANSMISSION 722 Bolted-on rear axle shaft
BF35.30-P-1001-01D	Filling capacity	Inner constant velocity joint	g	120	105

REAR AXLE SHAFT

Number	Designation			Model 203.016/216 with transmission 716 Rear axle shaft (bolted on)	Model 203.076/276 Rear axle shaft (bolted on)
BF35.30-P-1001-01D	Filling capacity	Inner constant velocity joint	g	150	150

REAR AXLE SHAFT

Number	Designation			Model 203.747 with transmission 716 Rear axle shaft (bolted on)	Model 203.747 with transmission 722 Rear axle shaft (bolted on)
BF35.30-P-1001-01D	Filling capacity	Inner constant velocity joint	g	100	85

REAR AXLE SHAFT, PLUGGED IN SHAFTS

Number	Designation			Model 166, 170, 171, 172, 204, 207, 208, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230, 246, 292 Plugged in shafts	Model 217 Plugged in shafts
BF35.30-P-1001-01G	Filling capacity for joint housing	Ø82	g	80	80
		Ø95	g	100	100
		Ø102	g	120	120
		Ø106	g	130	130
		Ø112	g	140	140
		Ø116	g	150	150

REAR AXLE SHAFT, PLUGGED IN SHAFTS

Number	Designation			Model 222 Plugged in shafts	Model 231 Plugged in shafts
BF35.30-P-1001-01G	Filling capacity for joint housing	Ø82	g	80	80
		Ø95	g	100	100
		Ø102	g	120	120
		Ø106	g	130	130
		Ø112	g	140	140
		Ø116	g	150	150

Detach cup seal (37i)

Using protective jaw pads, clamp rear axle shaft into vise.

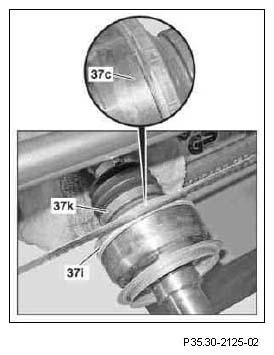

Using a hand coping saw, saw cup seal (37i) radially in the groove on the press-in edge so that a notch arises.
Saw carefully.

The joint ring (37c) will otherwise be damaged.

Courtesy of MERCEDES-BENZ USA

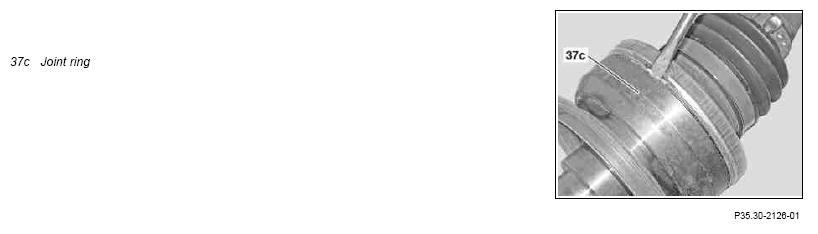

Use a screwdriver to lift the notched area.

Courtesy of MERCEDES-BENZ USA
Starting at the standing away end, unscrew cup seal (37i) using suitable pliers until it is possible to lift the cup seal (37i) off the joint ring (37c).
When unscrewing the cup seal (37i) ensure that the rear axle shaft does not fall out of the joint ring (37c) before the parts have match marks placed.
Mark installation position of rear axle shaft relative to joint ring (37c).
Remove clamp (37k).
Pull boot with boot cap (37i) from joint ring (37c) and slide down rear axle shaft.
If both boots are to be replaced, the boot opposite can be slid over the rear-axle shaft.

Courtesy of MERCEDES-BENZ USA

Mount cup seal (37i)
Replace O-ring on joint ring (37c).
Do not oil or grease the O-ring.

Otherwise the cup seal (37i) on the joint ring (37c) can turn.

Coat O-ring with spirit to make installation of the cup seal (37i) easier.
Mount cup seal (37i) with clamp (37k) and slide on as far as the end stop on the joint ring (37c).
Push on the cup seal (37i) carefully.

Otherwise the O-ring will be damaged.

If necessary, drive fully home by tapping gently with a plastic mallet.

Courtesy of MERCEDES-BENZ USA
Fix cup seal (37i) in circumferential groove of joint ring (37c) by applying four blows around circumference (each blow offset by 90°).
By means of even blows with a suitable hammer drive cup seal (37i) into the circumferential groove of the joint ring (37c).
Ensure that the boot cap (37i) seats properly.

Courtesy of MERCEDES-BENZ USA
By positioning a drift (0 4 mm) and applying even blows with the hammer, reposition the cup seal (37i) in the groove.

Courtesy of MERCEDES-BENZ USA

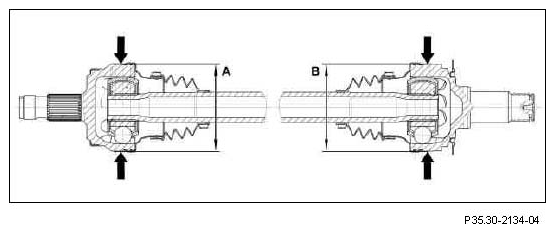

Measure size of joint housing.
The quantity of grease required depends on the size of the joint housing. Using a vernier caliper, measure the diameter (A) at the outer joint and the diameter (B) at the inner joint. For measuring points, see arrows. For quantity of grease, see Table.

Courtesy of MERCEDES-BENZ USA
Fill joint with new grease. Model 166, 170, 171, 172, 204, 207, 208, 209, 211, 212, 215, 216, 218, 219, 220, 221, 230
Plugged in shafts Model 217, 222

Plugged in shafts Model 231Plugged in shafts MODEL 203
Slide boot (37l) onto cup seal (37i).
Ensure that the ridge (arrow) on the boot (37l) is resting between the ridges on the boot cap (37i). After the boot is pushed on, no groove on the rear axle shaft should be visible at the small diameter of the boot (37l). This indicates that the raised bead of the boot (37l) is fixed in the first groove.

Courtesy of MERCEDES-BENZ USA

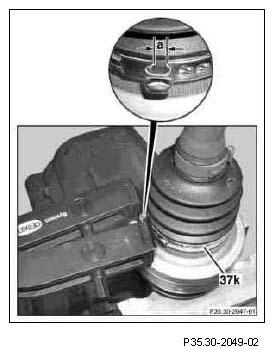

Mount clamps (37k).
Ensure that dimension (a), measured on the inside, is not exceeded or fallen below.

Dimensions:

a = 2 to 2.5 mm

Courtesy of MERCEDES-BENZ USA
