Remove/Install Rear Engine Cover - AR01.10-P-2408MRI

Engine 264 in model 205, 253

MODIFICATION NOTES

05.02.2019

Method description revised in entire document.

Operation steps 1 to 6.

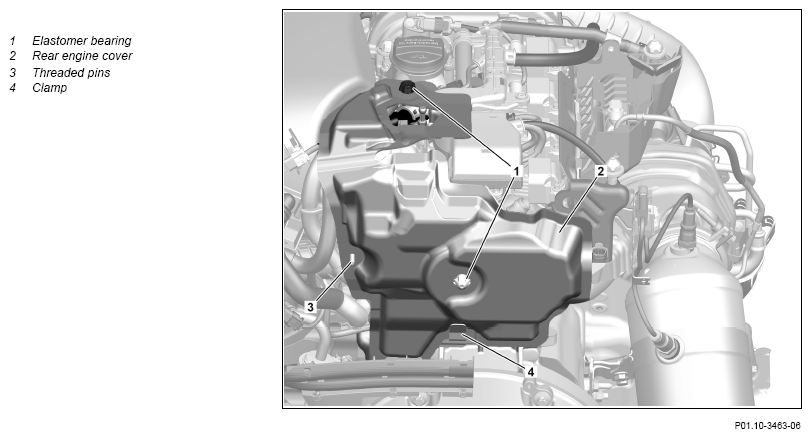

Fig 1: Rear Engine Cover Components Location - Engine 264 In Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove engine cover.		AR01.10-P-2405MRI
2	Remove elastomer bearings (1) from ball heads.	Wet elastomer bearings (1) with lubricant. Lubricant, rubber assembly 1	*BR00.45-Z-1010-06A
3	Tilt rear engine cover (2) toward rear and remove from threaded pin (3).
4	Guide rear engine cover (2) out of clip (4) and remove.	Ensure correct seating.
	Check
5	Check elastomer bearings (1) for damage and wear.	If there are problems, ↓ replace corresponding elastomer bearing (1).
6	Install in the reverse order.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1	A 000 989 03 67
