Remove/Install Engine Cover - AR01.10-P-2405MRI

Engine 264 in model 205, 253

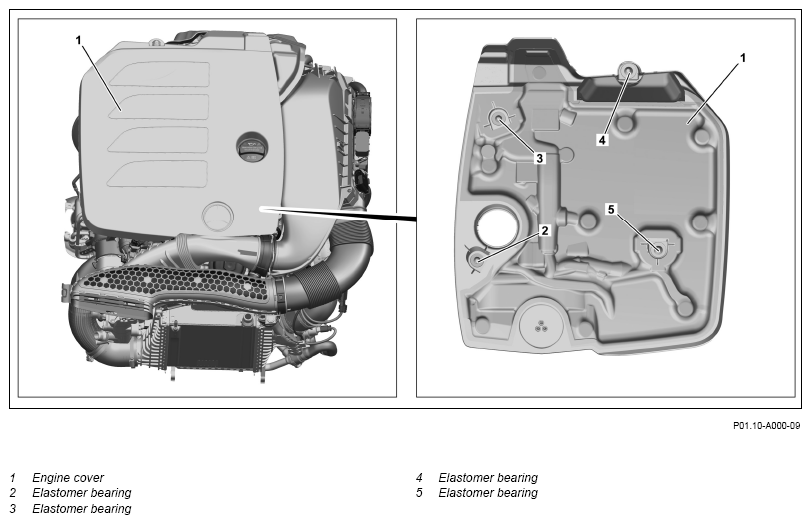

Fig 1: Engine Cover Components Location - Engine 264 In Model 205

G14172671

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Release engine cover (1) and remove.	Release elastomer bearings in the specified sequence (2, 3, 4, 5). Otherwise, the engine cover (1) will be damaged. Wet the elastomer bearings (2, 3, 4, 5) with lubricant. Lubricant rubber assembly 1	*BR00.45-Z-1010-06A
2	Check elastomer bearings (2, 3, 4, 5) for damage.	If damage is present, ↓ replace corresponding elastomer bearing (2, 3, 4, 5).
3	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1	A 000 989 03 67
