Remove/Install Low-Temperature Circuit Cooler - AR09.41-P-6936MRI
Engine 264 in model 205, 253
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Drain off coolant. | AR20.00-P-1142MRI | |
| 2 | Unclip condenser from brackets (5) and secure against falling down with lines connected. | AR83.30-P-6540MRI | |
| 3 | Remove coolant hose (2) from cooler (1). | AR20.20-P-7441-01RQ | |
| 4 | Remove coolant hose (3) from cooler (1). | AR20.20-P-7441-01RQ | |

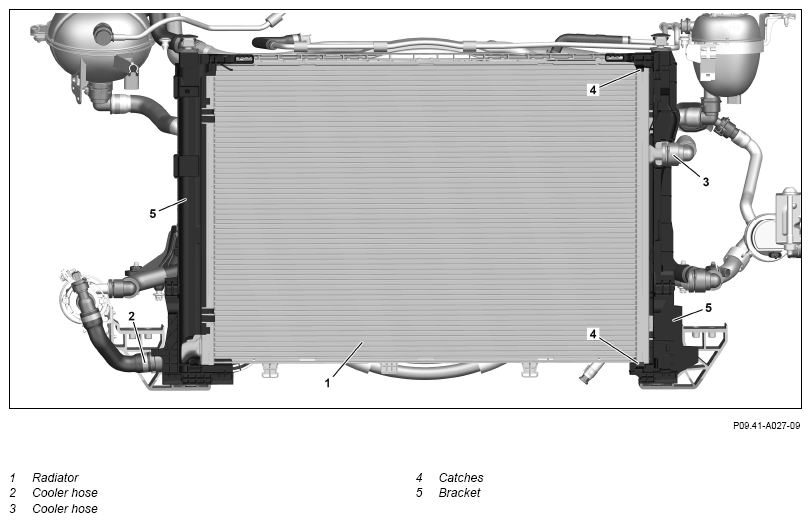

| 5 | Open catches (4) and remove cooler (1) from brackets (5). | ||
| 6 | Install in the reverse order. |
