Remove/Install Charge Air Pressure And Temperature Sensor Upstream Of Throttle Valve - AR09.41-P-2011MRI
Engine 264 in model 205, 253
Shown on model 205

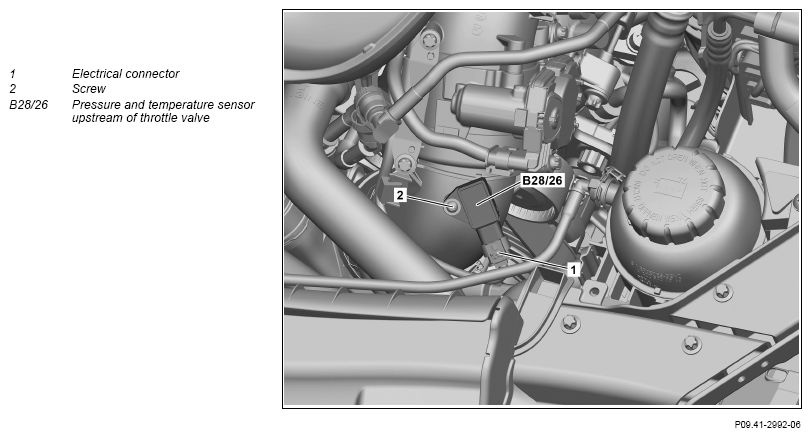

Fig 1: Charge Air Pressure And Temperature Sensor Upstream Of Throttle Valve Components Location - Engine 264 In Model 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove engine air intake duct upstream of air filter. | ||
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove screw/bolt (2). | *BA09.41-P-1004-01ZA | |
| 4 | Remove pressure and temperature sensor upstream of throttle valve (B28/26) and seal opening with suitable stop plug. | Fig 2 | |
| 5 | Install in the reverse order | ||
| Concluding tasks | |||
| 6 | Connect vehicle diagnosis system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-04B |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA09.41-P-1004-01ZA | Screw/bolt, pressure sensor to charge air line | Nm | 6 |
