Inspect Condition Of Brake Disks - AP42.10-P-4258EW

Model 205

except code B07 (AMG - ceramic brake system)

Model 207

Model 212

except code B07 (AMG - ceramic brake system)

Model 218

except code B07 (AMG - ceramic brake system)

MODIFICATION NOTES

22.01.2021 Brake disk thickness Model 205.075/076 with code 700 except code 944/P31/U29 model 205.077 except code 700 model 205.078 except code 459/700/P31/U29 model 205.079/080 except code 700/P31/U29 model 205.140/142/143/176 model 205.277/377/477 except code U29 BE42.10-P-1001-08W
22.01.2021 Brake disk thickness Model 205.000/001/011/014/015/040/078/079/200/201/211/214/215/278/280/301/314/315/376/378/379/380/401/414/415/476/478/480 with code P31/U29 model 205.002/004/005/007/036/037/042/043/044/204/205/207/236/237/240/242/243/244/304/305/340/342/343/404/405/440/442/443 with code P31 model 205.075/076 with code P31/U29 except code 700/944 model 205.275/276 with code P31/U29 except code 944 model 205.277/377/477 with code U29 BE42.10-P-1001-08W

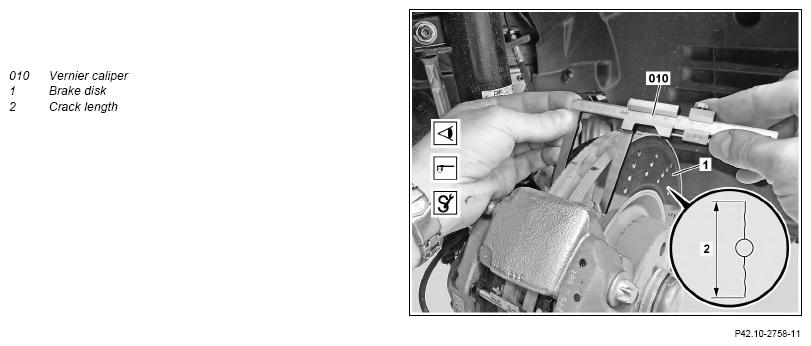

Shown on model 212

G14185854Courtesy of MERCEDES-BENZ USA

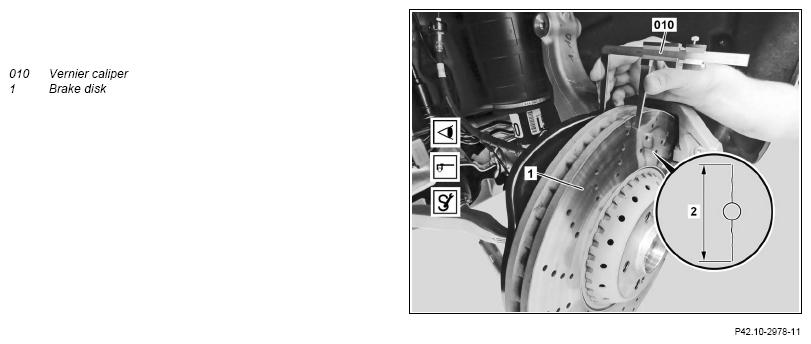

Shown on perforated compound brake disk

G14185855Courtesy of MERCEDES-BENZ USA

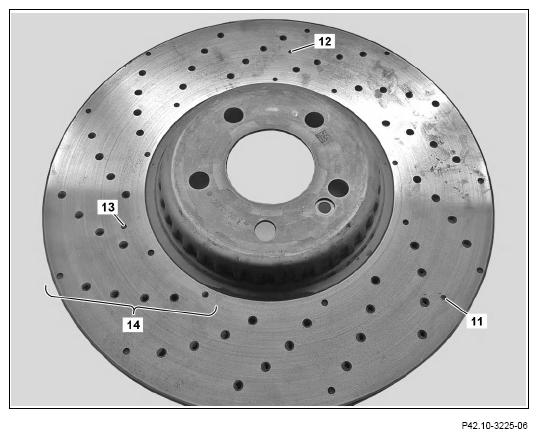

Shown on perforated compound brake disk with wear holes

G14185856Courtesy of MERCEDES-BENZ USA

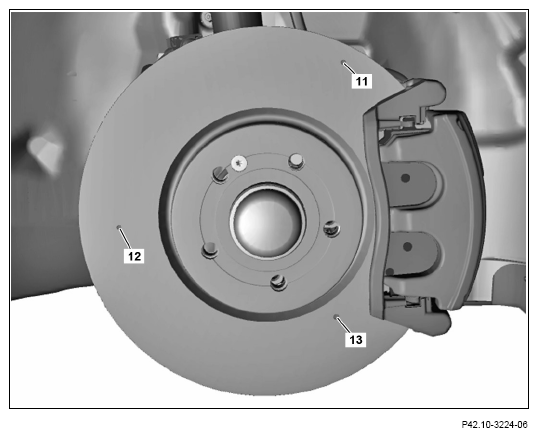

Shown on compound brake disk with wear holes

G14185857Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
  Notes on repairs to brake system   AH42.00-P-0003-01A
  Notes on handling, transport and storage of composite brake disks Model 205 except code B07 (AMG - ceramic brake system) AH42.10-P-9406-12LF
REMOVING Remove
1 Remove wheel and tire assemblies.
REFER TO TESTING & REPAIR   Model 205 AR40.10-P-1102A
    MODEL 207 AP40.10-P-4050CW
    MODEL 212, 218 AP40.10-P-4050EW
INSPECT Check
2 Assess condition of brake disks (1). If the assessment of the brakes is not OK,
↓
Replace brake disks (1).
IMPORTANT After obtaining special order.		 AP42.10-P-4256EW
MEASURING Measure
3 Measure brake disk thickness on front axle using vernier caliper (010). Model 205 front axle Brake disk thickness *BE42.10-P-1001-08W
    Model 207, 212, 218 front axle Brake disk thickness *BE42.10-P-1001-08P
    SPECIAL TOOL Caliper gauge
If the wear limit has been exceeded or will be exceeded before the next brake lining change,
↓
Replace brake disks (1).
IMPORTANT After obtaining special order.		 Fig 1
4 Measure brake disk thickness on rear axle using vernier caliper (010). Model 205 rear axle Brake disk thickness *BE42.10-P-1001-09U
    Model 207, 212, 218 rear axle Brake disk thickness *BE42.10-P-1001-09O
    SPECIAL TOOL Caliper gauge
If the wear limit has been exceeded or will be exceeded before the next brake lining change,
↓
Replace brake disks (1).
IMPORTANT After obtaining special order.		 Fig 1
INSTALLING Install
5 Install wheel and tire assemblies.
REFER TO TESTING & REPAIR   Model 205 AR40.10-P-1102A
    Model 207 AP40.10-P-4050CW
    MODEL 212, 218 AP40.10-P-4050EW
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 207.303/304/322/323/356/357/361/367/403/404/422/423/456/457/461 except code 950 (AMG sport package) except code 952 (Sports package) Model 207.326/336/388/426/436 except code 950 (AMG sport package) except code P96 (Sports Package - exterior) Model 207.355/359/455/459 Model 207.301/302/303/304/322/323/347/348/356/357/361/367/401/402/403/404/422/423/447/448/456/457/461 with code 950 (AMG sport package) Model 207.301/302/303/304/322/323/347/348/356/357/361/367/401/402/403/404/422/423/447/448/456/457/461 with code 952 (Sports package) Model 207.326/334/336/388/426/434/436 with code 950 (AMG sport package) Model 207.326/334/336/388/426/434/436 with code P96 (Sports Package - exterior) Model 207.362/365/372/462/465/472
BE42.10-P-1001-08P Brake disk thickness New mm 32, 0 32
Wear limit mm 29, 4 30
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 207.301/302/347/348/401/402/447/448 except code 950 (AMG sport package) except code 952 (Sports package) Model 207.334/434 except code 950 (AMG sport package) except code P96 (Sports Package - exterior) Model 207.373/473
BE42.10-P-1001-08P Brake disk thickness New mm 28, 0 36
Wear limit mm 25, 4 34
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 212.001/201 except code 950 (AMG sport package) except code 978 (Chassis - special version) except code P96 (Sports Package - exterior) Model 212.002/005/034/048/052/202/205/248 except code 950 (AMG sport package) except code 951 (Sports package USA) except code 952 (Sports package) except code P96 (Sports Package - exterior) Model 212.003/004/082 with code 1U9 (Load level concept ) except code 460 (Canada version) except code 494 (US version) except code 950 (AMG sport package) except code 951 (Sports package USA) except code P96 (Sports Package - exterior) Model 212.006/206/234/236 except code 950 (AMG sport package) except code P96 (Sports Package - exterior) Model 212.035 Model 212.001/201 with code 978 (Chassis - special version) Model 212.003/004/082 except code 1U9 (Load level concept ) except code 460 (Canada version) except code 494 (US version) except code 950 (AMG sport package) except code 951 (Sports package USA) except code P96 (Sports Package - exterior) Model 212.011/020/023/024/025/026/036/040/041/047/053/054/055/056/057/059/065/067/087/088/089/093/154/203/204/211/220/221/223/224/225/226/247/254/256/257/267/282/287/289/293 except code 950 (AMG sport package) except code 951 (Sports package USA) except code 952 (Sports package) except code P96 (Sports Package - exterior) Model 212.094/13/14/162/19
BE42.10-P-1001-08P Brake disk thickness New mm 28, 0 32, 0
Wear limit mm 25, 4 29, 4
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 212.001/002/005/011/020/023/024/025/026/034/036/040/041/047/048/052/053/054/055/056/057/059/065/067/087/088/089/093/154/201/202/203/204/205/211/220/221/223/224/225/226/247/248/254/255/256/257/259/267/282/287/288/289/293 with code 950 (AMG sport package) Model 212.001/002/005/011/020/023/024/025/026/034/036/040/041/047/048/052/053/054/055/056/057/059/065/067/087/088/089/093/154/201/202/203/204/205/211/220/221/223/224/225/226/247/248/254/255/256/257/259/267/282/287/288/289/293 with code P96 (Sports Package - exterior) Model 212.002/005/011/020/023/024/025/026/034/036/040/041/047/048/052/053/054/055/056/057/059/065/067/087/088/089/093/154/202/203/204/205/211/220/221/223/224/225/226/247/248/254/255/256/257/259/267/282/287/288/289/293 with code 951 (Sports package USA) Model 212.002/005/011/020/023/024/025/026/034/036/040/041/047/048/052/053/054/055/056/057/059/065/067/087/088/089/093/154/202/203/204/205/211/220/221/223/224/225/226/247/248/254/255/256/257/259/267/282/287/288/289/293 with code 952 (Sports package) Model 212.003/004/082 with code 460 (Canada version) with code 951 (Sports package USA) except code 1U9 (Load level concept ) Model 212.003/004/082 with code 494 (California version) with code 951 (Sports package USA) except code 1U9 (Load level concept ) Model 212.003/004/082 Model 212.073/091/273/291
BE42.10-P-1001-08P Brake disk thickness New mm 32 36
Wear limit mm 30 34
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 212.074/075/076/077/092/274/275/276/277/292 except code B07 (AMG - ceramic brake system) Model 218.30/32/336/35/36/393/394/397/90/92/936/959/96/993/994/997
BE42.10-P-1001-08P Brake disk thickness New mm 36 32
Wear limit mm 33 30
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 218.373/391/973/991 Model 218 with engine 157 except code B07 (AMG - ceramic brake system)
BE42.10-P-1001-08P Brake disk thickness New mm 36 36
Wear limit mm 34 33
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 205.000/001/011/014/015/040/078/079/200/201/211/214/215/278/280/301/314/315/376/378/379/380/401/414/415/476/478/480 with code P31/U29 model 205.002/004/005/007/036/037/042/043/044/204/205/207/236/237/240/242/243/244/304/305/340/342/343/404/405/440/442/443 with code P31 model 205.075/076 with code P31/U29 except code 700/944 model 205.275/276 with code P31/U29 except code 944 model 205.277/377/477 with code U29 Model 205.000/200/376/476 except code P31/U29 Model 205.001/201 with code 39R/55R/68R/R00/R89 Model 205.003 Model 205.036/037/236/237/240/244/340/440 except code P31 Model 205.040 except code 700/P31/U29 Model 205.075/076 except code 944/700/P31/U29 Model 205.275/276 except code 944/P31/U29
BE42.10-P-1001-08W Brake disk thickness New mm 30, 0 24, 0
Wear limit mm 28, 0 21, 4
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 205.001/201 except code 39R/55R/68R/P31/R00/R89/U29 model 205.002/004/005/204/205/304/305/404/405 except code P10/P31 model 205.007/042/043/044/207/242/243/342/343/442/443 except code P31 model 205.011/014/211/214/280/301/314/380/401/414/480 except code P31/U29 model 205.015/215/278/315/378/379/415/478 except code 459/P31/U29 Model 205.002/004/005/204/205/304/305/404/405 with code P10, model 205.006/008 except code 494/P31, model 205.012 with code P76 except code 494, model 205.015/078/215/278/315/378/379/415/478 with code 459, model 205.018/218 except code P31/U29, model 205.045 except code 494/700/P31, model 205.208/245 except code P31
BE42.10-P-1001-08W Brake disk thickness New mm 28, 0 30, 0
Wear limit mm 25, 4 27, 4
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 205.006/008/009/012/045/048/049/208/209/212/245/248/249/308/309/345/348/349/408/445/448/449 with code P31 model 205.013/047/053/066/147/213/247/253/266/366/466 model 205.018/218/318/418 with code P31/U29 model 205.019/219/319 with code 459/P31/U29 model 205.054 except code 944 model 205.249 with code U29 Model 205.006/008/012/045 with code 494, model 205.009/048/049/209/212/248/308/309/345/348/349/408/445/448/449 except code P31, model 205.012 with code P15, model 205.012 with code P23, model 205.019/219/319 except code 459/P31/U29, model 205.040/045/077/078/079/080/083 with code 700,
BE42.10-P-1001-08W Brake disk thickness New mm 32, 0 32, 0
Wear limit mm 30, 0 29, 4
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 205.054 with code 944 Model 205.075/076 with code 944 except code 700/P31/U29 Model 205.275/276 with code 944 except code P31/U29 Model 205.064/264/364/464 model 205.086/087/286/287/386/387/486/487 with code B06
BE42.10-P-1001-08W Brake disk thickness New mm 32, 0 36, 0
Wear limit mm 31, 95 34, 0
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 205.075/076 with code 700 except code 944/P31/U29 model 205.077 except code 700 model 205.078 except code 459/700/P31/U29 model 205.079/080 except code 700/P31/U29 model 205.140/142/143/176 model 205.277/377/477 except code U29 Model 205.083/283/383/48 3 with code 494 except code P31/U29, model 205.084/284/384/484 except code 459/494/P31/U29, model 205.084/284/384/484 with code 494 except code 459/P31/U29, model 205.145/148/177/178/183 model 205.249 except code P31/U29, model 205.318/418 except code P31/U29
BE42.10-P-1001-08W Brake disk thickness New mm 28, 0 32, 0
Wear limit mm 25, 4 29, 4
CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number Designation Model 205.083/283/383/483 with code 494+P31 model 205.083/283/383/483 with code 494+U29 model 205.084/284/384/484 with code 459 except code 494 model 205.084/284/384/484 with code 459+494 model 205.084/284/384/484 with code 494+P31 model 205.084/284/384/484 with code 494+U29 model 205.084/284/384/484 with code P31 except code 494 model 205.084/284/384/484 with code U29 except code 494 MODEL 205.086/087/286/287/386/387/486/487 with CODE U70
BE42.10-P-1001-08W Brake disk thickness New mm 32, 0 36, 0
Wear limit mm 30, 0 33, 0
CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number Designation Model 207.301/302/303/304/334/336/347/348/401/402/403/404/434/436/447/448 Model 207.322/323/326/355/356/357/359/361/362/365/367/372/373/388/422/423/426/455/456/457/459/461/462/465/472/473
BE42.10-P-1001-09O Brake disk thickness New mm 10, 0 22, 0
Wear limit mm 8, 3 19, 4
CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number Designation Model 212.001/002/005/006/034/035/040/041/048/052/201/202/205/206/234/248, model 212.003 ## as of 007599, 212.097 except code 1U9, model 212.011/211/236/247 except code 978, model 212.036/047 except code Z04, model 212.082 except code 1U9/978 Model 212.003 ## as of 007599 with code 1U9, model 212.003 ## up to 007598 except code 1U9, model 212.004/02/053/054/055/056/057/061/065/067/080/087/089/093/094/095/098/099/14/154/16/19/204/22/254/255/256/257/265/267/280/287/288/289/293/294/297/298, model 212.036/047 with code Z04, model 212.059/088/203/259/261/282/299 except code 978, model 212.082/097 with code 1U9
BE42.10-P-1001-09O Brake disk thickness New mm 10, 0 22, 0
Wear limit mm 8, 3 19, 4
CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number Designation Model 212.011/059/082/088/203/211/236/247/259/261/282/299 with code 978, model 212.072/073/090/091/272/273/291 Model 212.074/075/076/077/092/274/275/276/277/292 except code B07
BE42.10-P-1001-09O Brake disk thickness New mm 24, 0 26, 0
Wear limit mm 21, 4 24, 0
CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number Designation Model 218 with engine 274, 651 Model 218 with engine 276, 642
BE42.10-P-1001-09O Brake disk thickness New mm 10 22
Wear limit mm 8, 3 19, 4
CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number Designation Model 218 with engine 278 MODEL 218 with ENGINE 157 except CODE B07
BE42.10-P-1001-09O Brake disk thickness New mm 24 26
Wear limit mm 21, 4 24
CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number Designation Model 205.000/001/002/003/004/005/007/011/014/015/036/037/040/044/075/076/077/078/140/176/177/178/200/211/214/215/236/237/240/244/275/276/301/304/305/314/315/340/376/377/378/414/415/440/476, model 205.006/008/009/042/043/045/048/049/142/143/145/148/242/243/245/248/308/309/342/343/345/348/349/404/405/408/442/443/445/448 except code P31, Model 205.006/008/009/042/043/045/048/049/142/143/145/148/242/243/245/248/308/309/342/343/345/348/349/404/405/408/442/443/445/448 with code P31, model 205.012/013/047/053/054/066/079/080/083/084/147/183/212/213/247/253/266/280/283/284/366/379/380/383/384/466/480/483/484, model 205.018/019/201/218/219/277/278/318/319/401/418/477/478 with code P31/U29,
BE42.10-P-1001-09U Brake disk thickness New mm 12, 0 22, 0
Wear limit mm 10, 3 19, 4
CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number Designation Model 205.018/019/201/218/219/277/278/319/401/418/477/478 except code P31/U29, model 205.204/205/207/208/209 except code P10/P31, model 205.249/449 with code 494 Model 205.064/264/364/46 4
BE42.10-P-1001-09U Brake disk thickness New mm 12, 0 24, 0
Wear limit mm 10, 3 21, 4
CHECK VALUES FOR REAR AXLE BRAKE DISKS

Number Designation Model 205.086/087/286/287/386/387/486/487 except code P31 Model 205.086/087/286/287/386/387/486/487 with code P31, model 205.204/205/207/208/209 with code P10/P31, model 205.249/449 except code 494
BE42.10-P-1001-09U Brake disk thickness New mm 26, 0 22, 0
Wear limit mm 24, 0 19, 4
Fig 1: Identifying Caliper Gauge (140 589 00 19 00)
G13668688Courtesy of MERCEDES-BENZ USA
