Remove/Install Complete Side View Mirror - AR88.70-P-9000CLW
Model 205.3/4
Shown on left side of vehicle, Model 205.3 with code 270 (GPS antenna), code 274 (Telephone antenna) and code 501 (360° camera)

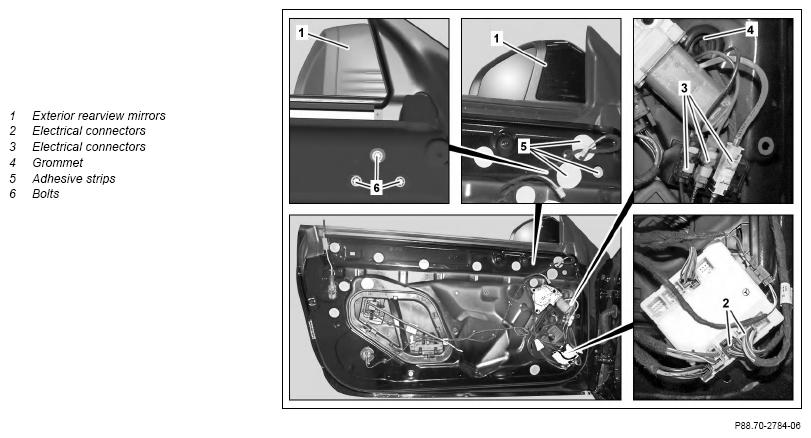

Fig 1: Side View Mirror Components Location - Model 205.3/4 (Shown On Left Side Of Vehicle, Model 205.3 With Codes 270, Code 274, 501)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, Trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/Install | |||
| 1 | Completely open side window | ||
| 2 | Remove door trim | AR72.10-P-1000LW | |
| 3 | Separate electrical connectors (2) | ||
| 4 | Unclip electrical connector (3) from bracket and disconnect | Model 205.3/4 with code 270 (Aerial for GPS) Model 205.3/4 with code 274 (Telephone antenna) Model 205.3/4 with code 501 (360° Camera) The number of electrical connectors (3) varies depending on the vehicle equipment. |
|
| 5 | Press grommet (4) into door | ||
| 6 | Remove adhesive strips (5) | Replace the adhesive strips (5). |
|
| 7 | Remove bolts (6) | Ensure that bolts (6) do not fall into the door. |
|
| 8 | Unhook side view mirror (1) from door | Carefully hook side view mirror (1) into door. Otherwise it may be damaged. |
|
| 9 | Guide electrical wiring harness of side view mirror (1) through door | Guide electrical connectors through door one after the other. Otherwise they may be damaged. |
|
| 10 | Install in the reverse order | ||
| 11.1 | Calibrate 360° Camera in side view mirror (1) with diagnostic system | Model 205.3/4 with code 501 (360° Camera) If the left or right side view mirror (1) has been removed. |
|
| AD00.00-P-2000-04B | |||
| 11.2 | Calibrate all the cameras for the 360° Camera system using the diagnostic system | Model 205.3/4 with code 501 (360° Camera) If the left or right side view mirror (1) has been removed. |
|
| AD00.00-P-2000-04B | |||
| Check | |||
| 12 | Check side view mirror (1) for proper function |
