Retrofit Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020LWR

Model 205.3

(except 205.364/386/387),

Model 205.4

(except 205.464/486/487)

with Code 876 (Interior Light package)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Update Vehicle Documentation (VeDoc)
1	Attach "Exit and warning lamp with logo projector retrofitted as per AZ82.20-P-0020LWR note" under field organization texts to DG 72 and DG 82.
	Remove
2	Switch off entrance and exit illumination at overhead control panel.

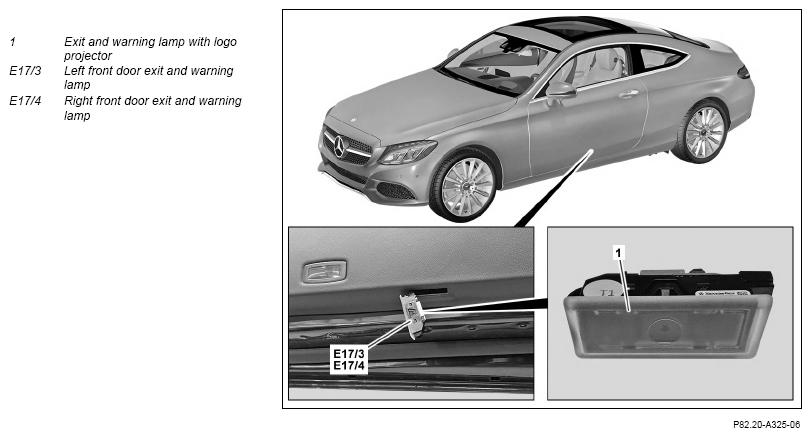

3	Remove left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4).	Unclip left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4) from below starting at the left side. Otherwise, the electrical connector located on the right-hand side will be damaged. The left front door exit and warning lamp (E17/3) and right front door exit and warning lamp (E17/4) are no longer required.
		Long wedge	Fig 1
	Install
4	Install exit and warning lamp with logo projector (1) in front door at right and left.	If the entrance and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with logo projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot.	AZ82.20-P-0020-04A
		Wiring harness repair kit, basic	Fig 3
		New passenger car wiring harness repair kit	Fig 2
	Check
5	Perform function test.	The entry and exit illumination on overhead control panel control unit must be switched on.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
