Install Exit And Warning Lamp With Logo Projector On Front Door - AZ82.20-P-0020-04A

Model 156.9

Model 166.0/8

Model 176.0

Model 205.0/2/3/4

Model 212.0/2

Model 213.0/2

Model 222

Model 246.2

Model 253.3/9

Model 292.3

The following work procedure describes retrofitting on the left side of the vehicle. Retrofitting on the right side of the vehicle is performed in the same way.

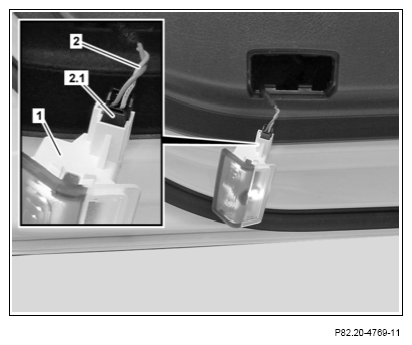

1. Attach black, 2-pin contact socket (2.1) of vehicle wiring harness (2) to exit and warning lamp with logo projector (1).
2. Switch on entrance and exit illumination at overhead control panel control unit.

   The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot.

   If the exit and warning lamp with logo projector (1) do not light up,

   ↓

   swap contact cavity assignment of electrical lines at black 2-pin contact socket (2.1) of vehicle wiring harness (2).

   The appropriate tool is available in the basic wiring harness repair kit or the supplementary passenger car wiring harness repair kit.

   Courtesy of MERCEDES-BENZ USA

3. Switch off entrance and exit illumination at overhead control panel control unit.

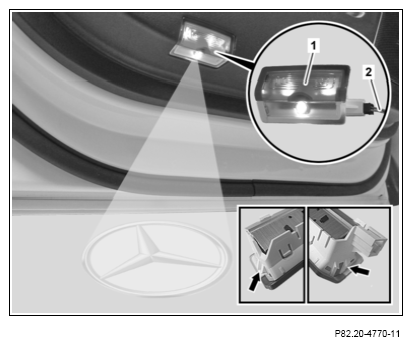

4. Install exit and warning lamp with logo projector (1) into cutout of door trim.

   Do not pinch or crush vehicle wiring harness (2).

   Otherwise, the vehicle wiring harness (2) may be damaged and system failures may occur.

   Install exit and warning lamp with logo projector (1) with the white lens facing downward. Ensure that catch hooks (arrows) are seated and engaged correctly in the door trim.

   Courtesy of MERCEDES-BENZ USA
