Retrofit Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020LW
Model 205.0/2
with Code 876 (Interior Light package)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Update Vehicle Documentation (VeDoc) | |||
| 1 | Enter special equipment into online vehicle data card. | Code O26 (Exit and warning lamp with logo projector). Make sure here that the first digit is the letter "O" for Oscar. |
|
| 2 | Attach "Exit and warning lamp with logo projector retrofitted as per AZ82.20-P-0020LW note" under field organization texts to DG 72 and DG 82. | ||
| Remove | |||

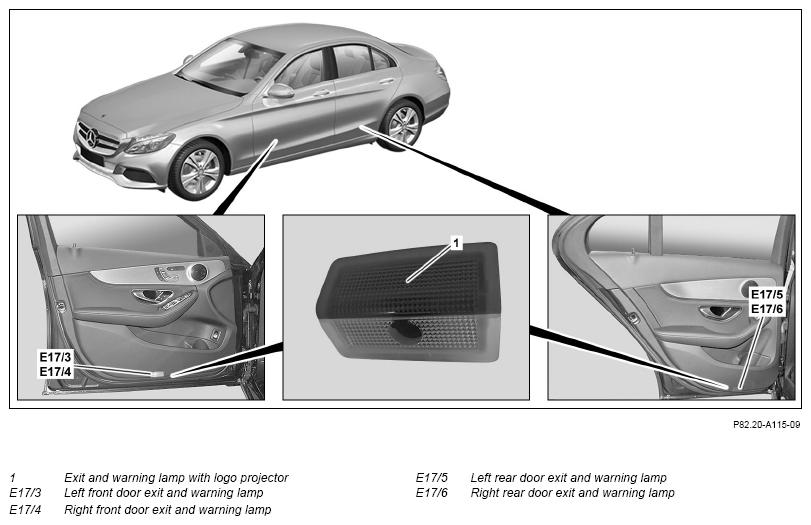

| 3 | Remove left front door exit and warning lamp (E17/3), right front door exit and warning lamp (E17/4), left rear door exit and warning lamp (E17/5) and right rear door exit and warning lamp (E17/6). | Starting at the bottom, on the left side, unclip the exit and warning lamp on left front door (E17/3), exit and warning lamp on right front door (E17/4), exit and warning lamp on left rear door (E17/5) and the exit and warning lamp on the right rear door (E17/6). Otherwise, the electrical connector located on the right-hand side will be damaged. |
|
Long wedge |
Fig 1 | ||
| 4 | Remove black 2-pin connector from left front door exit and warning lamp (E17/3), right front door exit and warning lamp (E17/4), left rear door exit and warning lamp (E17/5) and right rear door exit and warning lamp (E17/6). | Left front door exit and warning lamp (E17/3), right front door exit and warning lamp (E17/4), left rear door exit and warning lamp (E17/5) and right rear door exit and warning lamp (E17/6) are no longer required. |
|
| Install | |||
| 5 | Install exit and warning lamp with logo projector (1) in front door on right and left. | The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot. |
AZ82.20-P-0020-04A |
Wiring harness repair kit, basic |
Fig 3 | ||
New passenger car wiring harness repair kit |
Fig 2 | ||
| 6 | Install exit and warning lamp with logo projector (1) in rear door on right and left. | If the entrance and exit illumination on the overhead control panel control unit is switched on, the exit and warning lamp with logo projector (1) lights up as soon as it is connected to the vehicle wiring harness. The heat sink fitted to the exit and warning lamp with logo projector (1) gets very hot. |
AZ82.20-P-0020-05A |
Wiring harness repair kit, basic |
Fig 3 | ||
New passenger car wiring harness repair kit |
Fig 2 | ||
| Check | |||
| 7 | Perform function test. | The entry and exit illumination on overhead control panel control unit must be switched on. |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (refer to XENTRY Portal Parts Information) | Parts kit for exit and warning lamps with logo projector | 1 |
