Remove/Install Telematics Services Communications Module Control Unit - AR82.85-P-0020LW
Model 205.0 (except 205.013/047/053/054), 205.2 (except 205.213/247/253), 205.3
with code 06U (Mercedes connect me standard services)
Model 205.0 (except 205.013/047/053/054), 205.2 (except 205.213/247/253), 205.3
with code 350 (Ecall emergency call system, Europe)
Model 205.0 (except 205.013/047/053/054), 205.2 (except 205.213/247/253), 205.3
with code B54 (Live Traffic Information)
Model 205.0 (except 205.013/047/053/054), 205.2 (except 205.213/247/253), 205.3
with code B57 (KOM Module battery charging)

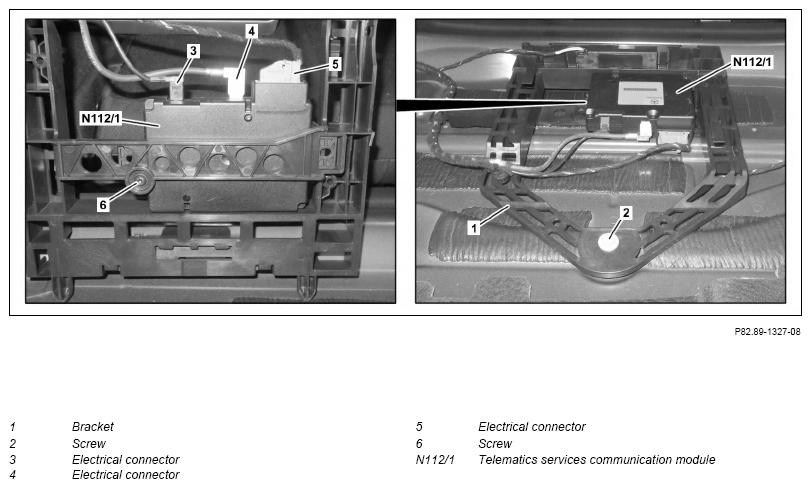

Fig 1: Telematics Services Communications Module Control Unit Components Location - Model 205.0/3 With Codes 06U, 350, B54 And B57
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission telematics services communication module (N112/1). | When replacing telematics services communications module (N112/1). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Remove front section of trunk floor. | Model 205.0/3 | |
| Model 205.0 | AR68.80-P-0005LWW | ||
| 3.2 | Remove load compartment floor front section. | Model 205.2 | AR68.80-P-0010LWS |
| 4 | Remove bolt (2) and pull out holder (1) towards rear. | ||
| 5 | Disconnect electrical connectors (3, 4, 5). | ||
| 6 | Remove bolt (6) and take off telematics services communications module (N112/1). | ||
| 7 | Install in the reverse order |
