Remove/Install TV Tuner - AR82.85-P-7366LWN
Model 205.4 with code 865 (digital TV)
Shown with code B01 (48V technology)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Commission TV tuner control unit (N143). | When replacing the TV tuner control unit (N143). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trunk recess trim. | ||
| 4 | Remove on-board electrical system battery. | Model 205.4 with code 865 (digital TV) with code B01 (48V technology) | AR54.10-P-0005LW |

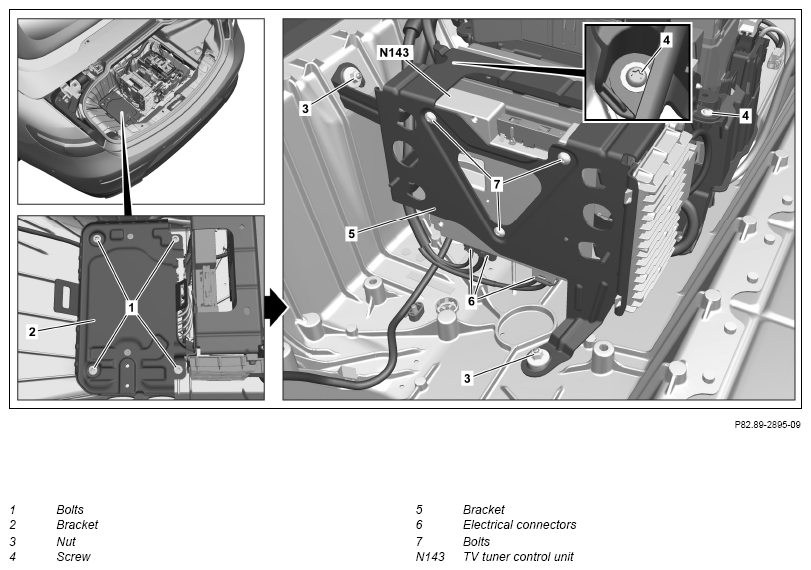

| 5 | Remove screws (1) and bracket (2). | Model 205.4 with code 865 (digital TV) with code B01 (48V technology) | |
| 6 | Unscrew nuts (3). | ||
| 7 | Unscrew bolts (4). | ||
| 8 | Raise bracket (5) with TV tuner control unit (N143). | ||
| 9 | Disconnect electrical connectors (6) and cover fiber-optic cables. | ||
| 10 | Unscrew screws (7). | ||
| 11 | Remove TV tuner control unit (N143) downwards from bracket (5). | ||
| 12 | Install in the reverse order. |
