Remove/Install Radio Antenna Amplifier - AR82.62-P-8306LW

Model 205.0/1/3 as of model year 2019

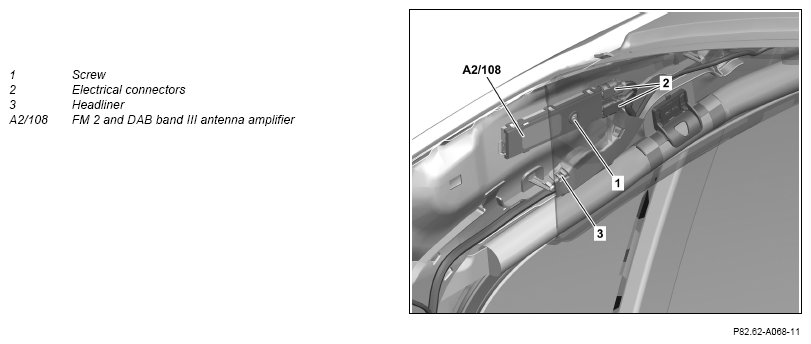

Fig 1: Radio Antenna Amplifier Components Location - Model 205.0/3 As Of Model Year 2019; Shown On Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove C-pillar trim at left.	Model 205.3 as of model year 2019	AR68.30-P-4490CLW
		Model 205.0/1 as of model year 2019	AR68.30-P-4490LW
2	Press roof lining (3) to one side.	Carefully press roof lining (3) to one side. Otherwise the roof lining (3) can be damaged.
3	Remove screw (1) and expose FM 2 and DAB band III antenna amplifier (A2/108) until the electrical connectors (2) are accessible.	The screw/bolt (1) remains on the FM 2 and DAB band III antenna amplifier (A2/108).
4	Disconnect electrical connectors (2) and remove FM 2 and DAB band III antenna amplifier (A2/108).
5	Install in the reverse order.
