Remove/Install Control Unit For Emergency Call System - AR82.95-P-1005LW
Model 205 (except 205.013/047/053/054/147/213/247/253)
with code 348 (Emergency call/assistant system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission emergency call system control unit (N123/4). | When replacing emergency call system control unit (N123/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Remove front section of trunk floor. | Model 205.0 (except 205.013/047/053/054), 205.1 (except 205.147) with code 348 (Emergency call/assistant system) |
AR68.80-P-0005LWW |
| 3.2 | Remove load compartment floor front section. | Model 205.2 (except 205.213/247/253) with code 348 (Emergency call/assistant system) | AR68.80-P-0010LWS |
| 4 | Disconnect electrical connectors (3, 4, 5). | ||
| 5 | Unscrew bolts (2). | ||

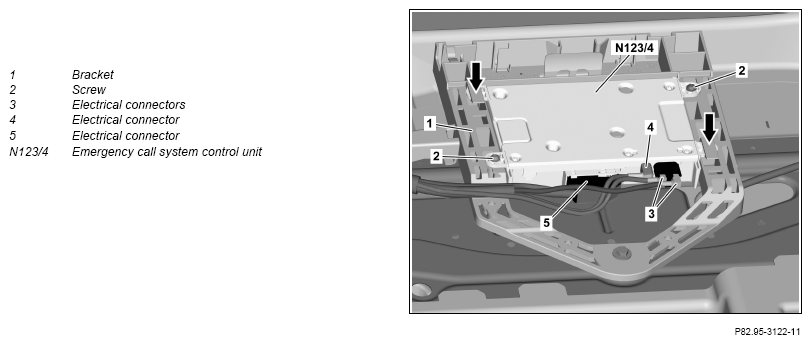

| 6 | Pull emergency call system control unit (N123/4) rearwards out of the retaining tabs (arrows) of the holder (1). | ||
| 7 | Install in the reverse order |
