Retrofit COMAND Online - AN82.85-P-0009LWC

Model 205.0/2/3/4

with code 3U1 (Head unit europe/CIS-states/Monoglei)

with code 448 (Touchpad)

with code 506 (Audio 20 NTG 5.5 radio)

except code 522 (Audio 20 radio)

except code 625 (Australia specification)

except code 822 (Addit. parts for South African vehicles)

except code 830 (China version)

except code 835 (South Korea version)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

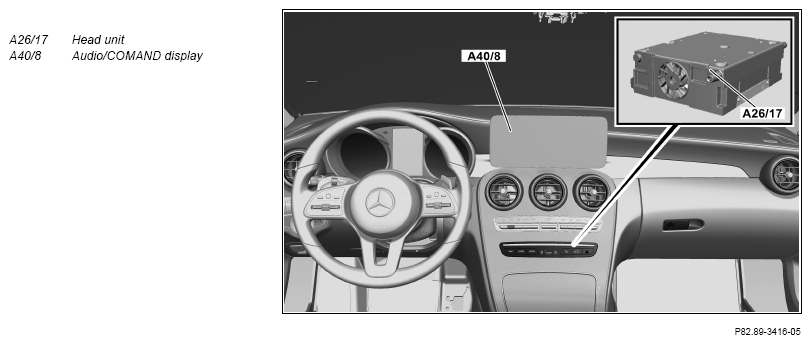

1	Remove head unit (A26/17).
		The head unit (A26/17) is no longer required.	AR82.85-P-1101LWM
2	Remove audio/COMAND display (A40/8).	Model 205 except code 859 (Central display)
		The Audio/COMAND display (A40/8) is no longer required.	AR82.60-P-7722LW
	Install
3	Install new audio/COMAND display (A40/8).	Model 205 except code 859 (Central display)
			AR82.60-P-7722LW
4	Install new head unit (A26/17).
			AR82.85-P-1101LWM
5	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
6	Delete special equipment from on-line vehicle data card.	Code 506 (Audio 20 radio NTG 5.5) Model 205 with code 355 (Pre-installation for navigation retrofit) Model 205 with code 357 (Map navigation)
7	Enter special equipment into online vehicle data card.	Code 01U (Navigation service) Code 02U (Office function in vehicle) Code 08U (Vehicle setup) Code 09U (Vehicle monitoring) Code 12U (Concierge service) Code 15U (Pre-installation for Mercedes-Benz Link) Code 531 (COMAND APS) Model 205 except code 859 (Central display)
8	Attach note "COMAND APS retrofitted as per" under field organization texts to DG 82.		AN82.85-P-0009LWC
9	Connect diagnostic system and select vehicle using vehicle identification number (VIN).
			AD00.00-P-2000-04B
10	Perform variant coding for retrofitting of special equipment.		AN82.61-P-0001-05LW
11	Disconnect diagnostic system.
			AD00.00-P-2000-04B
	Check
12	Perform function test.	See Owner's Manual.
