Remove/Install Liquid Cooled Charge Air Cooler - AR09.41-P-0105MFC
Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury
to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil |
Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain off low-temperature circuit coolant. | AR09.41-P-6834MFC | |
| 2 | Remove air filter housing. | AR09.10-P-1150MFC | |
| 3 | Remove the front and side battery cover, voltage dip limiter and fuse and relay module. | Engine 260 in model 118, 177, 247 with code B01 (48V technology) with code M016 (Uprated engine) |
AR54.10-P-1134MFI |
| Engine 260 in model 118, 177, 247 with code M016 (Uprated engine) except code B01 (48V technology) |
AR54.10-P-0005MFA | ||
| 4 | Remove engine air intake duct downstream of air filter. | AR09.10-P-8130MFC | |
| 5 | Remove charge air pipe downstream of exhaust gas turbocharger. | AR09.41-P-1333MFC | |
| 6 | Remove low-temperature circuit expansion reservoir. | AR09.41-P-0001MFC | |

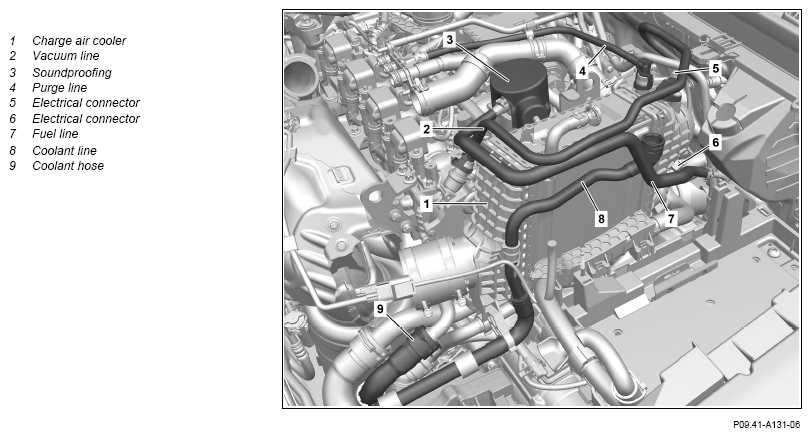

| 7 | Unclip the coolant line (8) on the charge air cooler (1). | ||
| 8 | Release and disconnect the electrical connector (5), unclip the electric line on the charge air cooler (1) and place to one side. | ||
| 9 | Remove purge line (4) at charge air cooler (1). | Fig 3 | |
| 10 | Remove coolant hose (9) at coolant line to charge air cooler (1). | AR20.20-P-7441-01RQ | |
| Fig 4 | |||
| Fig 2 | |||
| 11 | Remove vacuum line (2) at vacuum pump. | Fig 3 | |
| 12 | Unclip the vacuum line (2) and fuel line (7) on the charge-air distributor (1) and place to one side. | ||
| 13 | Remove soundproofing (3). | ||

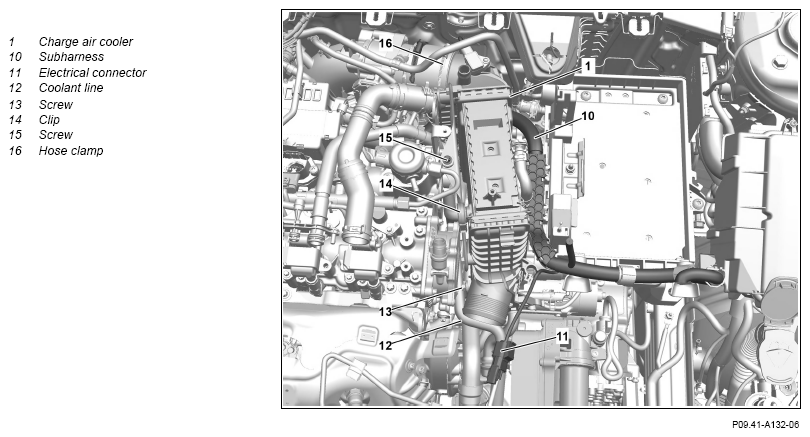

| 14 | Remove screw (15). | *BA09.41-P-1005-01KOA | |
| 15 | Unscrew the screw (13) for the holder of the coolant line (12). | *BA09.41-P-1007-01KOA | |
| 16 | Open clamp (14), remove coolant line (12) from charge air cooler (1). | Fig 4 | |
| Fig 3 | |||
| 17 | Release and disconnect the electrical connector (11) for the lambda sensor. | ||
| 18 | Unclip the subharness (10) on the battery frame and place to one side. | ||
| 19 | Release hose clamp (16). | *BA09.41-P-1003-01KOA | |
| 20 | Release the charge air cooler (1) from the elastomer bearings and lift it up until you can access the electrical connector (6) on the overrun mode bypass air switchover valve (Y101). | ||
| Lubricant, rubber assembly 1 L | *BR00.45-Z-1010-06A | ||
| 21 | Release and disconnect electrical connector (6). | ||

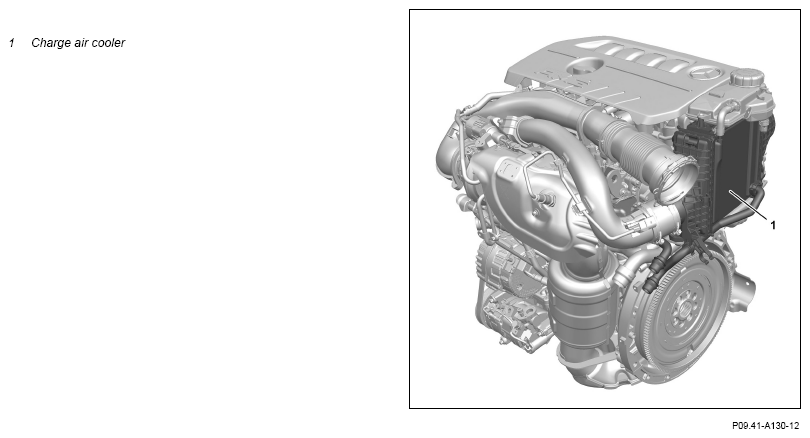

| 22 | Remove the charge air cooler (1). | ||
| 23 | Check charge air cooler (1) for damage. | If there are problems: ↓ Replace charge air cooler (1). |
|
| 24 | Check the elastomer bearings of the charge air cooler (1) for damage. | If there are problems: ↓ replace the elastomer bearings of the charge air cooler (1). |
|

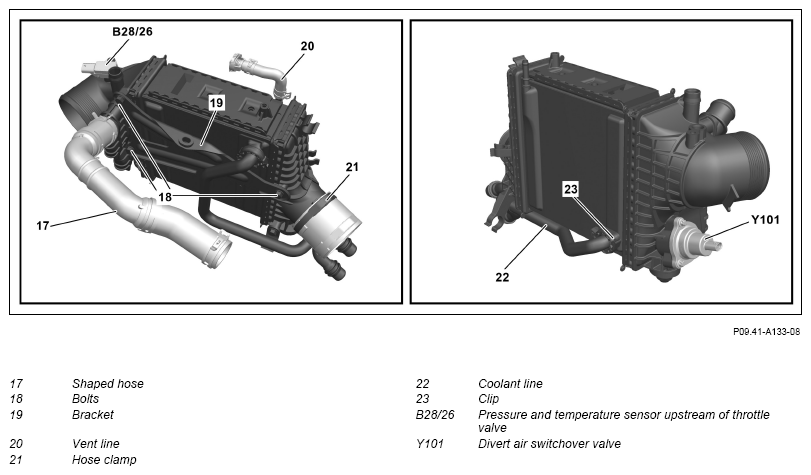

| 25 | Remove bleed line (20) from charge air cooler (1). | When installing a new charge air cooler (1). Hose clamp pliers |
|
| Fig 3 | |||
| Fig 5 | |||
| 26 | Remove molded hose (17) from charge air cooler (1). | When installing a new charge air cooler (1). | |
Hose clamp pliers |
|||
| Fig 6 | |||
| Fig 2 | |||
| 27 | Open the hose clamp (21) and remove the boot from the charge air cooler (1). | When installing a new charge air cooler (1). | |
| *BA09.41-P-1003-01KOA | |||
| 28 | Remove clamp (23) and remove coolant line (22). | When installing a new charge air cooler (1). | |
| Fig 4 | |||
| Fig 2 | |||
| 29 | Remove pressure and temperature sensor upstream of throttle valve (B28/26). | When installing a new charge air cooler (1). | |
| *BA09.41-P-1004-01KOA | |||
| Fig 5 | |||
| 30 | Remove overrun mode bypass air switchover valve (Y101). | When installing a new charge air cooler (1). |
|
| *BA09.41-P-1001-01KOA | |||
| Fig 4 | |||
| 31 | Unscrew screws (18) and remove holder (19). | When installing a new charge air cooler (1). | |
| *BA09.41-P-1007-01KOA | |||
| 32 | Install in the reverse order. | ||
| 33 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 34 | Perform engine test run. While doing so, check engine for proper operation and leak tightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 260.9 | |
|---|---|---|---|
| BA09.41-P-1001-01KOA | Bolt, solenoid valve to charge air cooler | Nm | 8 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 260.9 | |
|---|---|---|---|
| BA09.41-P-1003-01KOA | Clamp, boot to charge air line/charge air cooler | Nm | 4 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 260.9 | |
|---|---|---|---|
| BA09.41-P-1004-01KOA | Pressure and temperature sensor to charge air cooler | Nm | 6 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 260.9 | |
|---|---|---|---|
| BA09.41-P-1005-01KOA | Screw, charge air cooler holder to cylinder head cover | Nm | 8 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 260.9 | |
|---|---|---|---|
| BA09.41-P-1007-01KOA | Screw, coolant line holder to charge air cooler | Nm | 6 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
