Checking Brake Booster - AR43.10-P-0325MFA

Model 118, 177, 247

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Brake fluid notes		AH42.50-P-0001-01A
	Remove
1	Remove left front wheel and tire assembly.		AR40.10-P-1102MFA
2	Remove heat shield for firewall.	Model 118, 177, 247 with engine 260 Model 118, 177, 247 with engine 282 Model 118, 177, 247 with engine 654 Model 247 with engine 608
		Model 247 with engine 608	AR49.10-P-0001MFE
		Model 118, 177, 247 with engine 282	AR49.10-P-0001MFD
		Model 118, 177, 247 with engine 260	AR49.10-P-0001MFC
		Model 118, 177, 247 with engine 654	AR49.10-P-0001MFF
3	Remove cover above brake fluid expansion reservoir.
4	Clean area around cap on brake fluid expansion reservoir.	Before opening, clean the area surrounding the cap thoroughly. Otherwise dirt particles in the hydraulic component parts can result in malfunctions and total failure of the brake system.
		Assembly cleaner	*BR00.45-Z-1028-04A
5	Unscrew cap on brake fluid expansion reservoir and suction off some brake fluid.	Hand pump	Fig 1
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
6	Connect filling unit to brake fluid reservoir.
	000 588 01 82 00 Filling unit		WS25.00-P-0016B
	General brake fluid		BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A

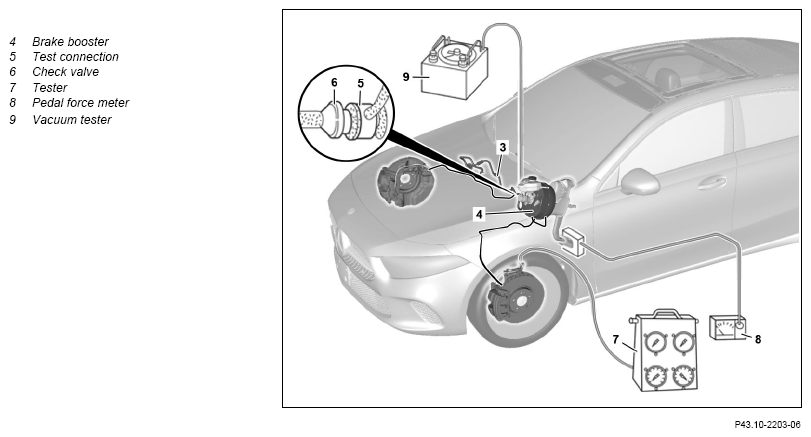

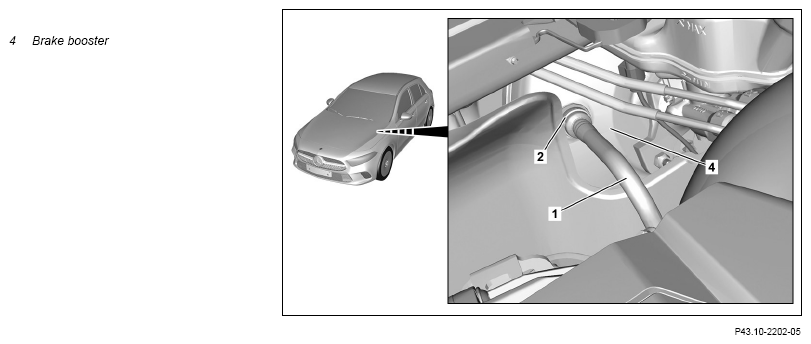

7	Reduce vacuum in brake booster (4) by depressing brake pedal several times.
8	Connect vacuum tester (9) with test connection (5) to brake booster (4).		AR43.10-P-0024-01V
		Tester	Fig 5
		Test connection	Fig 4
9	Remove vent screw from front brake caliper or the driver's side and connect test equipment (7).
	000 588 07 21 00 Test equipment	Use correct connection fitting (pitch, centering cone, etc.). Leaks and measurement errors can otherwise occur.	WS42.00-P-0014B
10	Bleed test equipment (7).
	000 588 07 21 00 Test equipment		WS42.00-P-0014B
11	Connect pedal force meter (8) at brake pedal.	Commercially available devices/tools  Pedal force meter (8)
12	Start the engine and generate specified vacuum.	If this vacuum is not reached or it drops immediately, the seal between the brake booster (4) and master brake cylinder may be damaged or the check valve (6) may be defective.
		Model 118.### 1# with engine 260 Model 118.### 1# with engine 282 except code 950 (AMG sport package) except code U29 (Sports braking system) Model 118.### 1# with engine 282 with code 950 (AMG sport package) Model 118.### 1# with engine 282 with code U29 (Sports braking system) Model 118.### 1# with engine 608 except code 950 (AMG sport package) except code U29 (Sports braking system) Model 118.### 1# with engine 608 with code 950 (AMG sport package) Model 118.### 1# with engine 608 with code U29 (Sports braking system) Model 118.### 2# Brake line pressure	*BE43.10-P-1004-01J
		Model 177.### 1# with engine 260 Model 177.### 1# with engine 282 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Model 177.### 1# with engine 608 Model 177.### 2# with engine 260, 608 Model 177.### 2# with engine 282 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Brake line pressure	*BE43.10-P-1004-01H
		Model 247.### 1# with engine 282 Model 247.### 1# with engine 608 Model 247.### 2# Model 247.0## 1# with engine 654 except code U29 (18-inch brake system) Model 247.0## 1# with engine 654 with code U29 (18-inch brake system) Brake line pressure	*BE43.10-P-1004-01I
		If the vacuum is not reached. ↓ Switch off engine, and check seal between brake booster (4) and master brake cylinder as well as the check valve (6).
			AR42.10-P-0300MFA
			AR43.10-P-0023MFA
13	Replace seal between brake booster (4) and master brake cylinder.	If the specified vacuum has not been reached or if it drops off straight away and the check valve (6) is not defective.
			AR42.10-P-0300MFA
14	Apply specified force to brake pedal and read off line pressure on test equipment (7).
	000 588 07 21 00 Test equipment		WS42.00-P-0014B
		Model 118.### 1# with engine 260 Model 118.### 1# with engine 282 except code 950 (AMG sport package) except code U29 (Sports braking system) Model 118.### 1# with engine 282 with code 950 (AMG sport package) Model 118.### 1# with engine 282 with code U29 (Sports braking system) Model 118.### 1# with engine 608 except code 950 (AMG sport package) except code U29 (Sports braking system) Model 118.### 1# with engine 608 with code 950 (AMG sport package) Model 118.### 1# with engine 608 with code U29 (Sports braking system) Model 118.### 2# Brake line pressure	*BE43.10-P-1004-01J
		Model 177.### 1# with engine 260 Model 177.### 1# with engine 282 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Model 177.### 1# with engine 608 Model 177.### 2# with engine 260, 608 Model 177.### 2# with engine 282 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) Brake line pressure	*BE43.10-P-1004-01H
		Model 247.### 1# with engine 282 Model 247.### 1# with engine 608 Model 247.### 2# Model 247.0## 1# with engine 654 except code U29 (18-inch brake system) Model 247.0## 1# with engine 654 with code U29 (18-inch brake system) Brake line pressure	*BE43.10-P-1004-01I
		Adapter for brake pedal winch	Fig 3
		Pedal arrester If the line pressure is not reached. ↓ Replace brake booster (4).	Fig 2
			AR43.10-P-0350MFA
15	Switch off engine.
16	Remove pedal force meter (8) from brake pedal.	Commercially available devices/tools  Pedal force meter (8)
17	Disconnect vacuum tester (9) with test connection (5) from brake booster (4).		AR43.10-P-0024-01V
		Tester	Fig 5
		Test connection	Fig 4
18	Disconnect test equipment (7) with connection fitting and screw in vent screw all the way at brake caliper on the driver's side.
	000 588 07 21 00 Test equipment		WS42.00-P-0014B
19	Bleed brake caliper on the driver's side.
	000 588 01 82 00 Filling unit		WS25.00-P-0016B
			AR42.10-P-0010-02MFA
		Bleed screw at brake caliper	*BA42.10-P-1004-10ZA
20	Disconnect filling unit from brake fluid reservoir.
	000 588 01 82 00 Filling unit		WS25.00-P-0016B
	General brake fluid		BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A
21	Check and correct fluid level in brake fluid reservoir.
			AP42.10-P-4210D
	Install
22	Screw on cap of brake fluid expansion reservoir.
23	Install cover above brake fluid expansion reservoir.
24	Install heat shield for firewall.	Model 118, 177, 247 with engine 260 Model 118, 177, 247 with engine 282 Model 118, 177, 247 with engine 654 Model 247 with engine 608
		Model 247 with engine 608	AR49.10-P-0001MFE
		Model 118, 177, 247 with engine 282	AR49.10-P-0001MFD
		Model 118, 177, 247 with engine 260	AR49.10-P-0001MFC
		Model 118, 177, 247 with engine 654	AR49.10-P-0001MFF
25	Install left front wheel and tire assembly.		AR40.10-P-1102MFA

CHECK VALUES FOR PNEUMATIC BRAKE BOOSTER

Number	Designation					Model 177.### 1# with engine 654 with code 411 with code B01, model 177.### 1# with engine 654 with code M013 except code 950/U29, model 177.### 2# with engine 260/608, model 177.### 2# with engine 282 except code ME08	Model 177 with engine 282 with code ME08, model 177.### 1# with engine 139/260, model 177.### 1# with engine 654 with code 950/U29, model 177.### 1# with engine 654 with codeB01 except code 411
BE43.10-P-1004-01H	Brake line pressure	Vacuum 0.92...0.98 bar	Force on brake pedal (force to input rod for pedal -i = 3.3)	165 N	bar	18	21
				330 N	bar	43	44
				495 N	bar	67	68
				660 N	bar	92	91
				825 N	bar	111	113

CHECK VALUES FOR PNEUMATIC BRAKE BOOSTER

Number	Designation					Model 177.### 1# with engine 282 except code ME08, model 177.### 1# with engine 608 model 177.### 2# with engine 139/654
BE43.10-P-1004-01H	Brake line pressure	Vacuum 0.92.0.98 bar	Force on brake pedal (force to input rod for pedal -i = 3.3)	165 N	bar	21
				330 N	bar	44
				495 N	bar	68
				660 N	bar	91
				825 N	bar	113

CHECK VALUES FOR PNEUMATIC BRAKE BOOSTER

Number	Designation					Model 247.### 1# with engine 282 except code ME08, model 247.### 1# with engine 608, model 247.0## 1# with engine 654 except code U29 (18 inch brake system)	Model 247.### 1# with engine 260T model 247.### 1# with engine 282 with code ME08, model 247.0## 1# with engine 654 with code U29 (18 inch brake system), model 247.6## 1# with engine 654
BE43.10-P-1004-01I	Brake line pressure	Vacuum 0.92...0.98 bar	Force on brake pedal (force on input rod where pedal i = 3.3)	165 N	bar	18	21
				300 N	bar	43	44
				495 N	bar	67	68
				660 N	bar	92	91
				825 N	bar	111	113

CHECK VALUES FOR PNEUMATIC BRAKE BOOSTER

Number	Designation					Model 247.### 2#
BE43.10-P-1004-01I	Brake line pressure	Vacuum 0.92.0.98 bar	Force on brake pedal (force on input rod where pedal i = 3.3)	165 N	bar	21
				300 N	bar	44
				495 N	bar	68
				660 N	bar	91
				825 N	bar	113

CHECK VALUES FOR PNEUMATIC BRAKE BOOSTER

Number	Designation					Model 118.### 1# with engine 139/260 model 118.### 1# with engine 282/608/654 with code 950/U29	Model 118.### 1# with engine 282/608/654 except code 950/U29
BE43.10-P-1004-01J	Brake line pressure	Vacuum 0.92.0.98 bar	Force on brake pedal (force on input rod where pedal i = 3.3)	165 N	bar	21	18
				300 N	bar	44	43
				495 N	bar	68	67
				660 N	bar	91	92
				825 N	bar	113	111

CHECK VALUES FOR PNEUMATIC BRAKE BOOSTER

Number	Designation					Model 118.### 2#
BE43.10-P-1004-01J	Brake line pressure	Vacuum 0.92.0.98 bar	Force on brake pedal (force on input rod where pedal i = 3.3)	165 N	bar	21
				300 N	bar	44
				495 N	bar	68
				660 N	bar	91
				825 N	bar	113

FRONT AXLE BRAKE CALIPER

Number	Designation			Model 118	Model 177
BA42.10-P-1004-10ZA	Bleed screw at brake caliper	M10	Nm	18	18

FRONT AXLE BRAKE CALIPER

Number	Designation			Model 247
BA42.10-P-1004-10ZA	Bleed screw at brake caliper	M10	Nm	18

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Pedal Arrester (000 589 48 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter For Brake Pedal Winch (211 589 00 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Test Connection (168 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Tester (201 589 14 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
