Check Outside Of Vehicle In Visible Area For Signs Of Damage - AP60.00-P-0050L

Type 177

Courtesy of MERCEDES-BENZ USA

Shown on model 177.0

	Damage and stress caused to paintwork by external influences		AH98.00-P-8070-02A
	Check
1	Check body and detachable parts for damage and completeness	Dent/ deformation, Component missing, Crack/ scratch, Other damage. If a problem arises ↓ Rectify the damage, subject to separate repair order, if necessary.

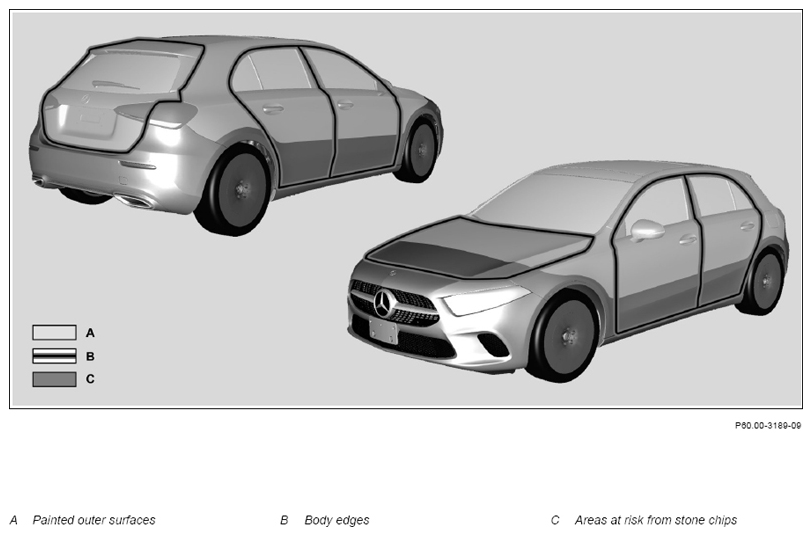

2	Check painted outer surfaces (A), vehicle body edges (B) and areas subjected to stone impacts (C) for damage and check the body for corrosion	The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings. Stone chipping, Scratch, Environmental influences, Paint peeling off. If a problem arises ↓ Proceed in accordance with the country-specific regulations for mobility and body shel complaints subject to separate repair order.
			OF98.00-P-3000-01RA
3	Check exterior lights glazing for damage	Water entry, Reflector dull, Component missing, corrosion, Crack/ scratch, Other damage. If a problem arises ↓ If necessary, rectify the problem, subject to separate repair order.
