Sketch Sheet Form For Paint Damages - Of98.00-P-3000-01RA
Model 177
Store paint sketch so that they are safe from revision!

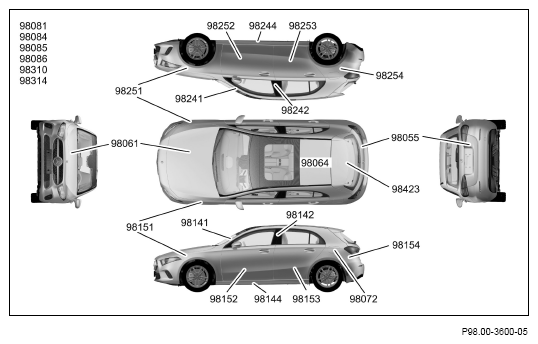

| Paint | Damaged part text | Corrosion | Paint | Damaged part text | Corrosion |
|---|---|---|---|---|---|
| 98055 | Rear-end door/liftgate | 74201 | 98153 | Left rear door | 73A01 |
| 98061 | Engine hood | 88201 | 98154 | Left rear fender | 63C11 |
| 98064 | Roof | 65001 | 98241 | Right A-pillar | 63P11 |
| 98072 | Fuel filler flap | 75101 | 98242 | Right B-pillar | 63P21 |
| 98081 | Body, general | 98244 | Right entrance | 63P01 | |
| 98084 | Engine compartment | 98251 | Right front fender | 88N01 | |
| 98085 | Underfloor protection | 98252 | Right front door | 72N01 | |
| 98086 | Wax for underfloor/cavity preservation | 98253 | Right rear door | 73N01 | |
| 98141 | Left A-pillar | 63B11 | 98254 | Right rear fender | 63R11 |
| 98142 | Left B-pillar | 63B21 | 98310 | Engine compartment wax preservation | |
| 98144 | Left entrance | 63B01 | 98314 | Trunk/cargo area | 88335 |
| 98151 | Left front fender | 88A01 | 98423 | Rear spoiler/lower section of rear wing | 88335 |
| 98152 | Left front door | 72A01 |

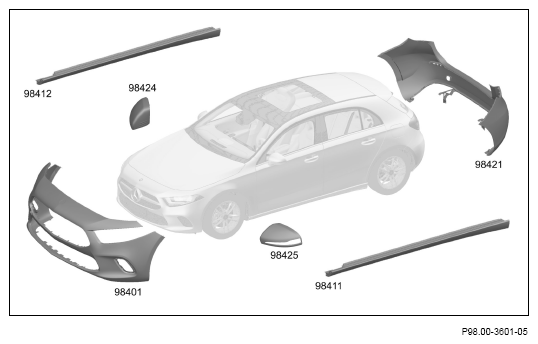

| Paint | Damaged part text | Corrosion | Paint | Damaged part text | Corrosion |
|---|---|---|---|---|---|
| 98401 | Front bumper paneling | 88109 | 98421 | Rear bumper paneling | 88137 |
| 98411 | Outside left side member trim | 69B50 | 98424 | Right outside mirror | 81P18 |
| 98412 | Outside right side member trim | 69P50 | 98425 | Left outside mirror | 81B18 |
| Paint | Damaged part text | Paint | Damaged part text |
|---|---|---|---|
| K1 | Dust/ dirt inclusion | L6 | Blisters |
| K2 | Rotor | L7 | Orange peel development/ structure |
| K3 | Color deviation | L8 | Grinding scoring |
| K4 | Cloudy | L9 | Polishing marks |
| K6 | Edge zone marking | LA | Abrasion |
| K7 | Defects | LB | Fading |
| K9 | Adhesion faults | LD | Insufficient hiding power |
| L1 | Mask edges | Y4 | Separation of the outer and inner surfaces from the core |
| L2 | Cracks | Y6 | Popping |
| L3 | Preservation residue | Y7 | Crater |
| L4 | Overspray |
