Remove/Install Side Paneling In Trunk - AR68.30-P-4800MFA
Model 177.0
Shown on model 177.0 except code B01 (48V technology)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Move driver's seat or front passenger seat forward. | ||
| 2 | Fold rear left and rear right seat backrests forward. | ||
| 3 | Remove rear-end center-section trim. | AR68.30-P-4786MFA | |
| 4 | Remove edge guard in working area. | ||
| 5 | Remove cover over screw (2). | ||
| 6 | Unscrew screw (2) and remove tie-down eye. | *BA68.50-P-1001-03I | |

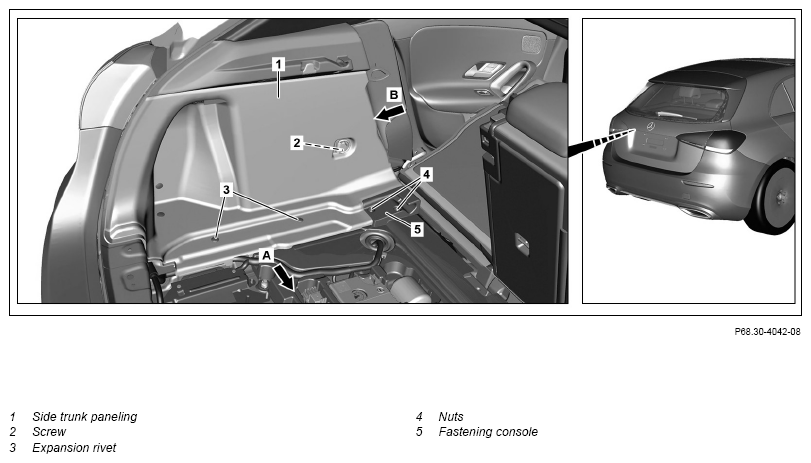

| 7 | Unclip expansion rivets (3). | Fig 1 | |
| 8 | Remove nuts (4) and remove mounting support (5). | ||
| 9 | Remove side trim in trunk (1) until electrical connector at rear can be accessed and release and disconnect electrical connector. | Model 177.0 with code U35 (12 V socket in load area) Only on left-hand side of the vehicle. |
|
| 10 | Remove side trim in trunk (1). | Ensure that side trim in trunk (1) correctly engages with adjacent trims. Damage to adjacent trim can otherwise occur. |
|
| 11 | Remove load compartment socket. | Model 177.0 with code U35 (12 V socket in load area) When replacing side trim in trunk (1) at left side of vehicle. |
|
| 12 | Install in the reverse order. |
CARGO RETAINERS
| Number | Designation | Model 177, 247 | |
|---|---|---|---|
| BA68.50-P-1001-03I | Screw/bolt for tie-down eye | Nm | 24 |
