Remove/Install Rear Center Section Cover - AR68.30-P-4786MFA
Model 177.0
| Remove/install | |||
| 1 | Remove load compartment floor from trunk | ||
| 2 | Remove edge guard in working area | ||
| 3 | Unscrew bolt (2) | ||
| 4 | Unclip cover of left and right screws (3). | ||
| 5 | Remove bolts (3) | *BA68.50-P-1001-03I | |

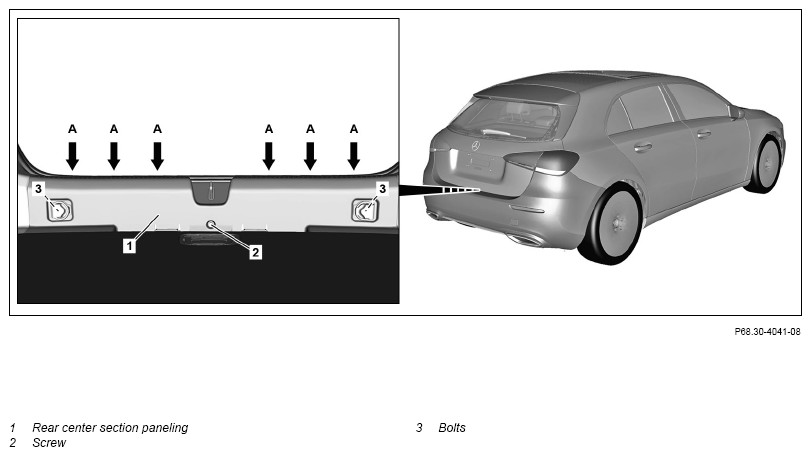

| 6 | Unclip rear-end center-section trim (1) at the attachment points (arrows A) and remove | Fig 1 | |
| 7 | Install in the reverse order |
CARGO RETAINERS
| Number | Designation | Model 177 | |
|---|---|---|---|
| BA68.50-P-1001-03I | Screw/bolt for tie-down eye | Nm | 24 |
