Remove/Install Tail Lamp Unit - AR82.10-P-4731MFV

Model 118.3, 177.1/9

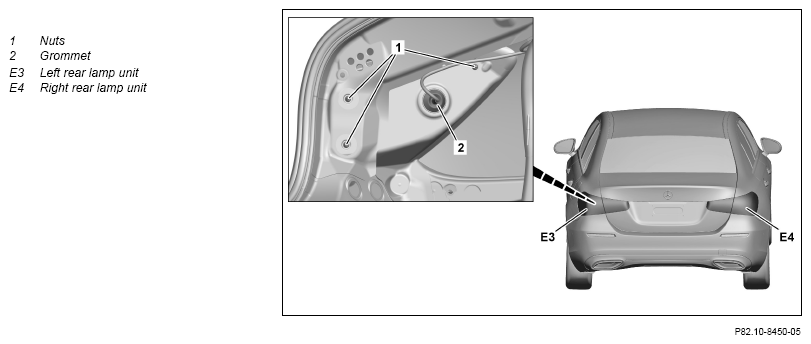

Fig 1: Tail Lamp Unit Components Location - Model 177.1

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove rear-end center-section trim.		AR68.30-P-4786MFV
2	Loosen left or right trunk lining at side in trunk until the nuts (1) are accessible.	Ensure that the edge guard is correctly seated in the working area.	AR68.30-P-4800MFV
3	Unscrew nuts (1).
4	Remove rear lamp units (E3, E4) until the electrical connector is accessible.	Do not crush or kink or subject lines to tension. This leads to line damage. Position rear lamp units (E3, E4) carefully. Otherwise adjacent parts may be damaged.
5	Release and disconnect electrical connector of rear lamp units (E3, E4).	Make sure that the grommet (2) is seated correctly.
6	Install in the reverse order.
