Remove/Install Rear Center Section Cover - AR68.30-P-4786MFV

Model 118.3, 177.1/9, 243, 247

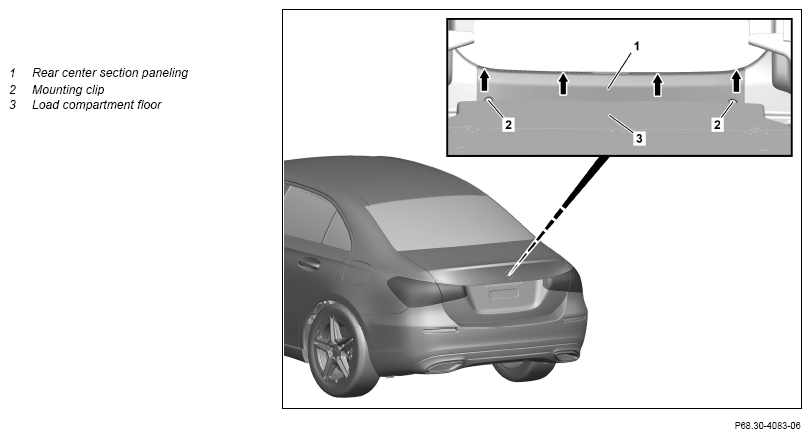

Shown on model 177.1

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove load compartment floor (3) from load compartment.
2.1	Remove retaining clips (2).	Model 118.3, 177.1/9, 243, 247.0 Dismantling tool	Fig 1
2.2	Remove screws at rear-end center-section trim (1).	Model 247.6/7
3	Unclip rear-end center-section trim (1) upwards (arrows) and remove.	Ensure that the edge guard is seated correctly in the working area. Long wedge	Fig 2
4	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
