Remove/Install Mobile Phone Cradle Control Unit - AR82.70-P-0007MFA
Model 118, 177, 243, 247
with code 897 (Front wireless telephone charging)
Model 118, 177, 247
with code 899 (Multifunction telephony)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove cover from center console. | AR68.20-P-2350MFA | |

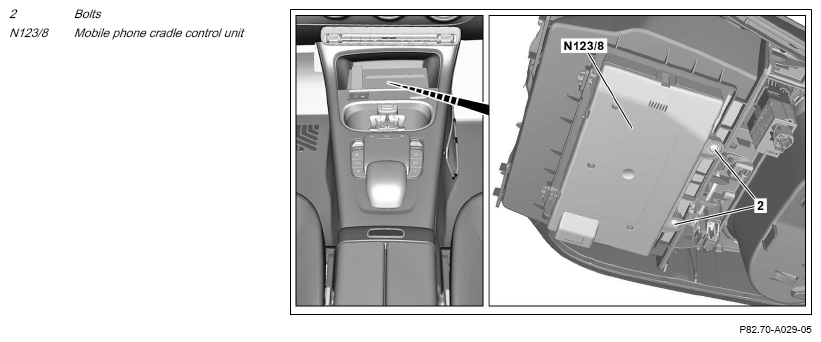

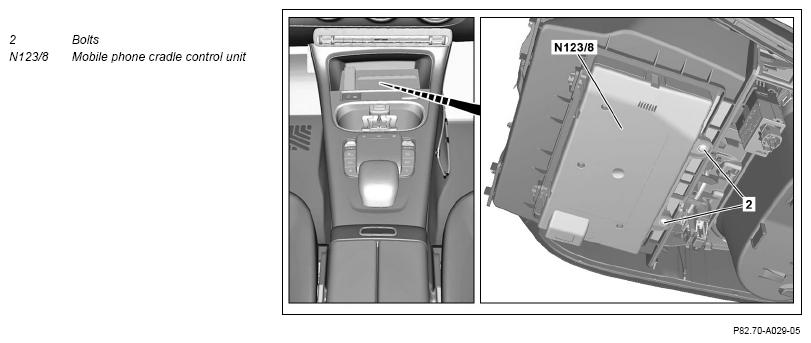

| 2 | Remove screw/bolts (2). | ||
| 3 | Remove mobile phone cradle control unit (N123/8). | ||
| 4 | Install in the reverse order. | ||
| 5 | Perform commissioning of mobile phone cradle control unit (N123/8). | If the mobile phone cradle control unit (N123/8) was replaced. | |
| AD00.00-P-2000-06MFA |
