Remove/Install Cover On Center Console - AR68.20-P-2350MFA
Model 118, 177, 243, 247
Shown on model 177 with code 429 (7G-DCT)
Shown on model 177 with code 429 (7G-DCT)
Shown on model 177 with code 429 (7G-DCT)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Open armrest. | ||
| 3 | Unclip inner panel of armrest cover (1) and remove screws. | Model 118, 177 with code 411 (6-speed manual transmission) |
|
| Fig 1 | |||

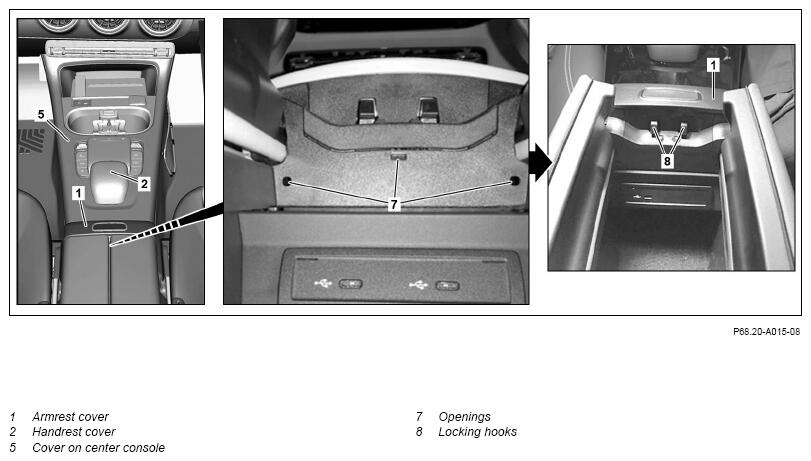

| 4 | Release catch hooks through openings (7) with suitable means; in this connection, slightly pull armrest cover (1) upwards. | ||
| 5 | Release locking hooks (8) and remove armrest cover (1). | ||
| 6 | Remove shift lever knob with gearshift lever boot. | Model 118, 177, 247 with transmission 711.6 | |
| AR26.60-P-0027MFA | |||
| 7 | Unclip handrest cover (2). | Model 118, 177, 243, 247 except code 411 (6-speed manual transmission) | |
| Fig 2 | |||

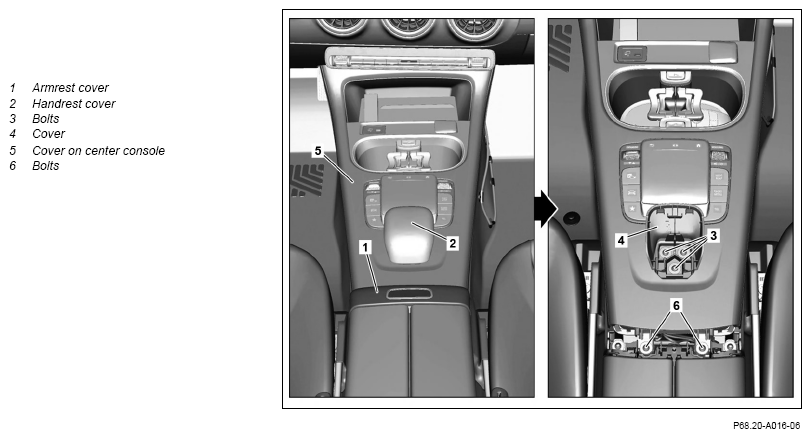

| 8 | Unscrew screws (3) and remove cover (4). | Model 118, 177, 243, 247 except code 411 (6-speed manual transmission) | |
| 9 | Remove screws (6). | ||
| 10 | Lift cover from center console (5) at rear until electrical connectors can be accessed. | Do not crush or kink or subject electric lines to tension. This will otherwise result in damage to electric lines and can impair their function. |
|
| 11 | Release and disconnect electrical connectors. | ||

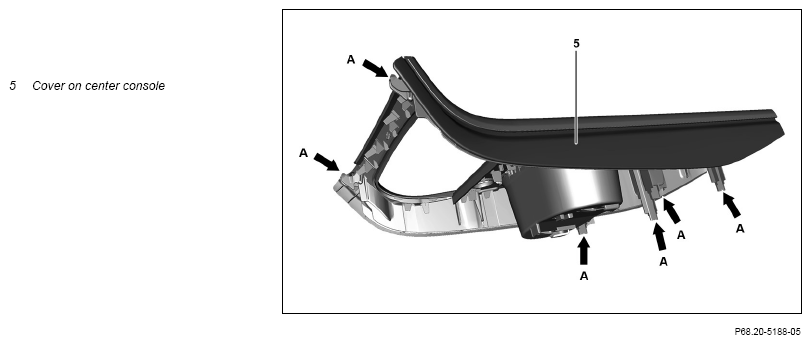

| 12 | Remove cover (5) from center console. | If catch hooks (arrows A) are damaged ↓ Replace cover (5) on center console. |
|
| 13 | Install in the reverse order. |
