Lower Exhaust System Risk Of Injury To Skin And Eyes Caused By Handling Hot Or Glowing Objects - AR49.10-P-7140-04VA

ENGINE 271, 272, 113 in MODEL 171 ENGINE 271, 276 in MODEL 172

Wear safety gloves, protective clothing and safety glasses, if necessary.

Fig 1: Identifying Assembly Tool (651 589 06 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60

Support the exhaust system with transmission jack (01) on rear muffler brace.
Shown on engine 272

Courtesy of MERCEDES-BENZ USA

Operation step 2 only for model 172 with engine 271:
Mount assembly tool on decoupling element for the exhaust system.
To avoid damage to the exhaust system ensure correct assembly of the assembly tool on the exhaust system.
Unhook exhaust system from all exhaust rubber bearings (1).
Use antifriction paste if necessary.
Lower exhaust system

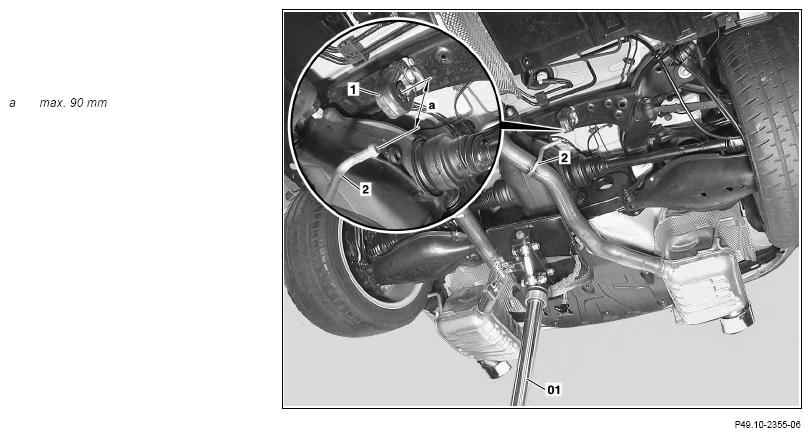

To avoid damage do not lower exhaust system more than distance (a).
