Overview Of System Components, Automatically Controlled All-Wheel Drive (4Matic) - GF28.00-P-9998AVK
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725 (except 725.096) in model 213
up to model year 2021
with code M005 (Vehicles with 4MATIC/all-wheel drive)

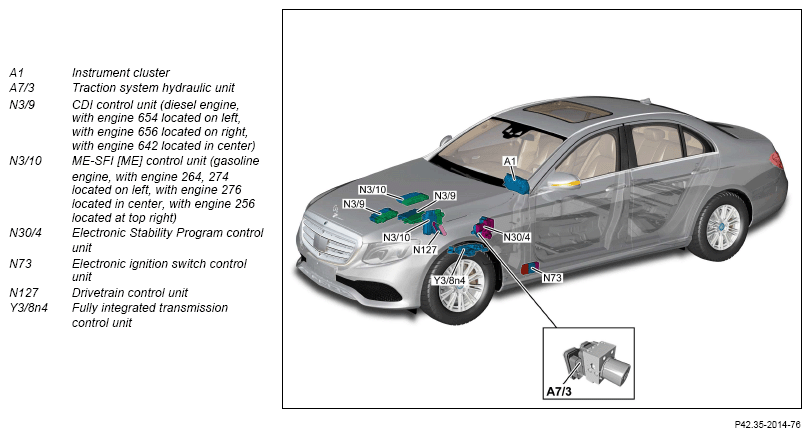

Shown on model 213.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Component description for CDI control unit | Transmission 725 (except 725.096) in model 213 with engine 642.8 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/9 | GF07.16-P-6000OGW | |
| Transmission 725 (except 725.096) in model 213 (except 213.016/216) with engine 654.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/9 |
GF07.16-P-6000ORC | ||
| Transmission 725 (except 725.096) in model 213 with engine 656.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Transmission 725 (except 725.096) in model 213 with engine 256.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 |
GF07.61-P-6000MRT | |
| Transmission 725 (except 725.096) in model 213 with engine 264.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 |
GF07.61-P-6000MRG | ||
| Transmission 725 (except 725.096) in model 213 (except 213.050/053/153) with engine 274.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 |
GF07.61-P-6000MRD | ||
| Transmission 725 (except 725.096) in model 213 with engine 276.8 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N3/10 | GF07.61-P-6000MND | ||
| Component description for Electronic Stability Program control unit | Transmission 725 (except 725.096) in model 213 (except 213.016/050/053/153/216) up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N30/4 | GF42.45-P-5119FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Drivetrain control unit, component description | Transmission 725 (except 725.096) in model 213 (except 213.016/216) with engine 654.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725 (except 725.096) in model 213 with engine 642.8 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 |
GF54.21-P-2141ORC | |
| Transmission 725 (except 725.096) in model 213 with engine 656.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 | GF54.21-P-2141OGS | ||
| Transmission 725 (except 725.096) in model 213 with engine 256.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 | GF54.21-P-2141LF | ||
| Transmission 725 (except 725.096) in model 213 with engine 264.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) | GF54.21-P-2141MRP | ||
| Transmission 725 (except 725.096) in model 213 with engine 274.9 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |||
| Transmission 725 (except 725.096) in model 213 with engine 276.8 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) N127 | |||
| Component description for fully integrated transmission control unit | Transmission 725.0 (except 725.007/017/096) in model 213 up to model year 2021 with code M005 (Vehicles with 4MATIC/all-wheel drive) Y38n4 | GF27.60-P-5165ANL | |
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVK |
