Remove/Install Left Oxygen Sensor Downstream Of Catalytic Converter - AR07.04-P-0082WA
Engine 276.8 in model 172

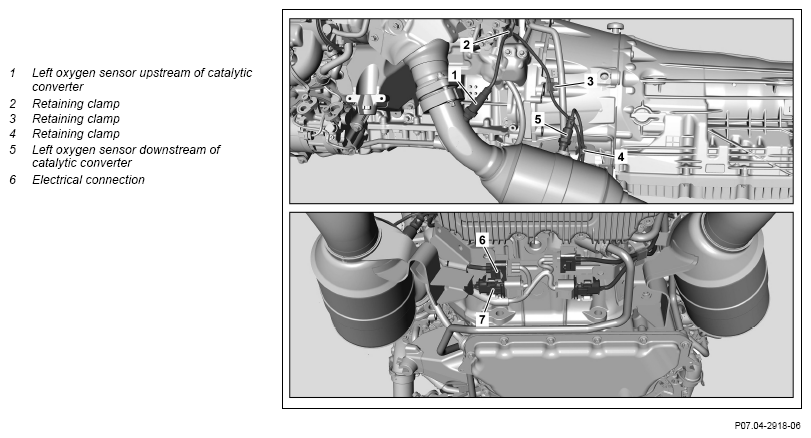

Fig 1: Left Oxygen Sensor Downstream Of Catalytic Converter Components Location - Engine 276.8 In Model 172
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (at least 2m) | ||
| 2 | Remove rear lower engine compartment paneling | AR61.20-P-1105W | |
| 3 | Unclip electrical connection (6) from bracket | ||
| 4 | Release and disconnect electrical connection (6) | ||
| 5 | Unclip retaining clip (4) | ||
| 6 | Remove left oxygen sensor downstream of catalytic converter (5) | Paste, hot lubrication 1 kg, DBL 6879.20 |
*BR00.45-Z-1005-06A |
| *BA14.00-P-1002-01A | |||
| Fig 2 | |||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| 9 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out an engine test run and check exhaust system for leak tightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
OXYGEN SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA14.00-P-1002-01A | Oxygen sensor at catalytic converter | Nm | 50 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
