Remove/Install Low Temperature Water Circuit Radiator - AR09.41-P-6935WA
ENGINE 276.8 in model 172
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove radiator | AR20.20-P-3865WA | |
| 2 | Detach coolant hose (2) | AR20.20-P-7441-01RQ | |

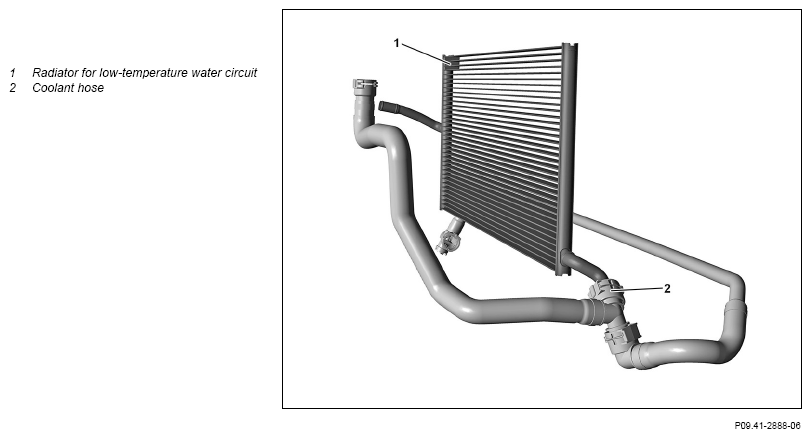

| 3 | Unclip radiator for low-temperature water circuit (1) from radiator support and remove upwards | ||
| Check | |||
| 4 | Check radiator for low-temperature water circuit (1) for damage | If damage is present ↓ Replace radiator for low-temperature water circuit (1). |
|
| 5 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out engine test run and check the engine cooling system for leaktightness and for proper function |
