Remove/Install Tuner Unit - AR82.60-P-2002W
Model 172
with code 536 (SIRIUS satellite radio complete system)
Model 172
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
Model 172
with code 865 (digital TV)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Carry out initial startup of tuner unit (A90/4) | When replacing tuner unit (A90/4). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove luggage compartment lining on right | AR68.30-P-4600W | |

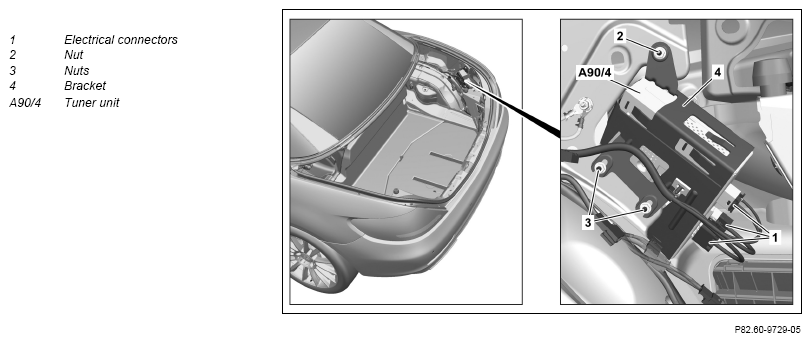

| 4 | Disconnect electrical connectors (1) and cover up fiber-optic cables | ||
| 5 | Unscrew nut (2) and unfasten nuts (3) | ||
| 6 | Unhook holder (4) with tuner unit (A90/4) and remove | ||
| 7 | Remove tuner unit (A90/4) from holder (4) | When replacing tuner unit (A90/4). | |
