Remove/Install Telescoping Nozzle For Headlamp Cleaning System - AR82.15-P-6100W
MODEL 172.4
with CODE (600) Headlamp cleaning system
with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
with CODE (621) Intelligent Light System (left-hand traffic)
with CODE (622) Intelligent Light System (right-hand traffic)
Shown on LH side

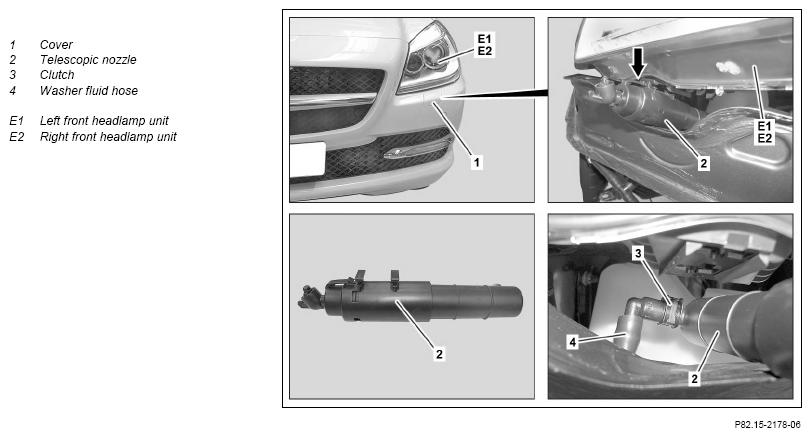

Fig 1: Telescoping Nozzle For Headlamp Cleaning System Components Location - Model 172.4 With Codes 615, 621, 622 (Shown On LH Side)
| Remove/install | |||
| 1 | Open the cover (1) | ||
| 2 | Release telescopic nozzle (2) from catch hook (arrow) and remove toward front from left front headlamp unit (E1) and right front headlamp unit (E2) | ||
| 3 | Lift vehicle on lifting platform. | AR00.60-P-1000V | |
| 4.1 | Remove bottom engine compartment paneling at front | Engine 271, 276 | AR61.20-P-1105W |
| 4.2 | Remove bottom section of soundproofing at front | Engine 651 | AR94.30-P-5300W |
| 5 | Release coupling (3) and remove washer fluid hose (4) from telescopic nozzle (2) | ||
| 6 | Remove telescopic nozzle (2) downwards | ||
| 7 | Install in the reverse order | ||
| 8 | Check headlamp cleaning system for proper function | AP82.30-P-8252V |
