Remove/Install Speakers In Front Door - AR82.62-P-7846W

Model 172

Shown on left door with code 810 (Sound system)

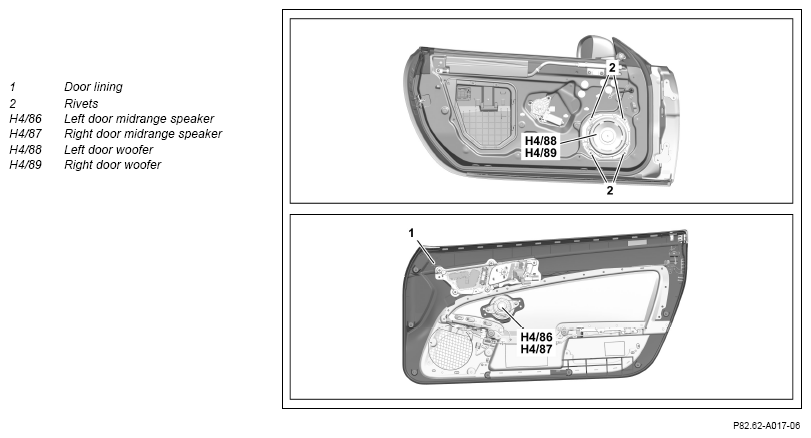

Fig 1: Front Door Speakers Components Location - Model 172.4 (Shown On Left Door With Code 810)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining (1).		AR72.10-P-1000W
2	Disconnect electrical connector on door mid-range speaker (H4/86, H4/87).	Model 172 with code 810 (Sound system)
3	Remove door mid-range speaker (H4/86, H4/87).	Model 172 with code 810 (Sound system)
4	Drill out rivets (2).	: Replace rivets (2).
5	Disconnect electrical connector at door bass speaker (H4/88, H4/89) and remove door bass speaker (H4/88, H4/89).
6	Install in the reverse order
