Remove/Install Sound System Amplifier Control Unit - AR82.62-P-7720W
MODEL 172.4
with CODE (810) Sound system
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect Star Diagnosis and perform initial startup of sound system amplifier control unit (N40/3) | When replacing the sound system amplifier control unit (N40/3). | AD00.00-P-2000-04A |
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||

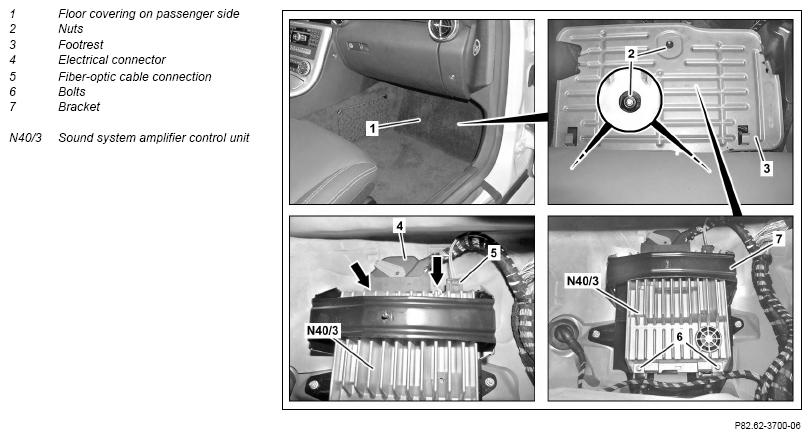

| 3 | Fold passenger-side floor covering (1) toward rear | ||
| 4 | Unscrew nuts (2) and remove footrest (3) | ||
| 5 | Disconnect electrical connector (4) | ||
| 6 | Disconnect optical fiber coupling (5) and cover connection at sound system amplifier control unit (N40/3) | ||
| Notes on avoiding damage to optical fibers during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05AK | |
| 7 | Remove bolts (6, arrows) | ||
| 8 | Remove sound system amplifier control unit (N40/3) downward from bracket (7) | ||
| 9 | Install in the reverse order |
