Remove/Install Media Interface Control Unit - AR82.60-P-1030W
MODEL 172.4
with CODE (518) Media interface
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect Star Diagnosis and perform initial startup of media interface control unit (N125/1) | When replacing the media interface control unit (N125/1). | AD00.00-P-2000-04A |

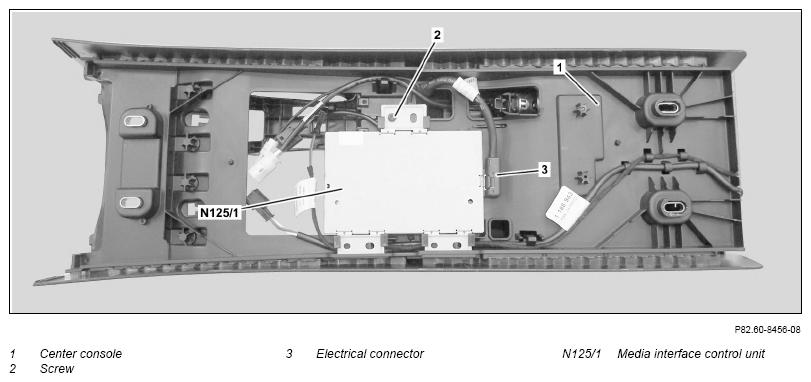

| 2 | Remove center console (1) | AR68.20-P-2000W | |
| 3 | Unscrew bolt (2) | ||
| 4 | Disconnect electrical connector (3) | ||
| 5 | Remove media interface control unit (N125/1) from center console (1) | ||
| 6 | Install in the reverse order |
