Remove/Install Headlamp Left Rear Level Sensor - AR82.10-P-4084W
Model 172.4
with code 615 (Bi-xenon headlamps with active light function)
Model 172.4
with code 621 (Intelligent Light System (left-hand traffic))
Model 172.4
with code 622 (Intelligent Light System)
Model 172.4
with code 640 (High-performance LED)
Model 172.4
with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 172.4
with code 642 (Dynamic LED headlamps, right-hand traffic)

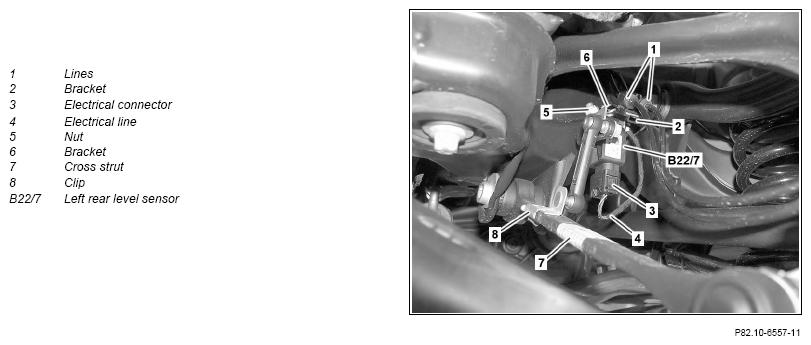

Fig 1: Headlamp Left Rear Level Sensor Components Location - Model 172.4 With Codes 615, 621, 622, 640, 641 642
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000V | |
| 2 | Unclip lines (1) from holder (2) and remove holder (2) | ||
| 3 | Release and disconnect electrical connector (3) from rear left level sensor (B22/7) and unclip electric line (4) from holder (6) | ||
| 4 | Unscrew nut (5) from holder (6) | ||
| 5 | Release clamp (8) from cross strut (7) | ||
| 6 | Remove rear left level sensor (B22/7) | ||
| 7 | Install in the reverse order | ||
| Adjust | |||
| 8 | Connect vehicle diagnosis system and adjust zero position of headlamps | ||
| AD00.00-P-2000-04A | |||
| 9 | Check headlamp setting and correct if necessary | ||
| AP82.10-P-8260V |
