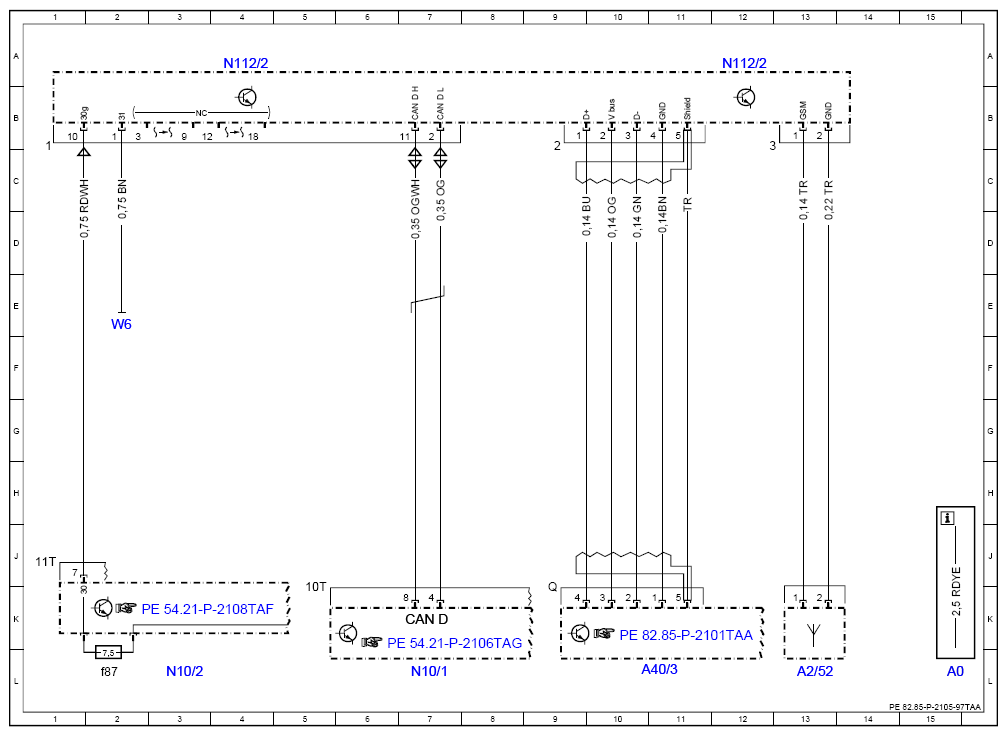

(Wiring Diagram For Telematics Services Communications Module Control Unit - PE82.85-P-2105-97TAA)
Model 172
as of 12/1/13 up to 2/29/16
with code B54 (Live Traffic Information)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2/52 | Emergency call system antenna | 13L |
| A40/3 | COMAND® control unit | 11L |
| CAN D | Diagnostic CAN | 7K |
| N10/1 | Front SAM control unit with fuse and relay module | 7L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f87 | Fuse 87 | 2L |
| N112/2 | Telematics services communication module | 4A |
| N112/2 | Telematics services communication module | 12A |
| W6 | Left wheel arch trunk ground point | 2E |
