Disk Changer Function - GF82.85-P-2032RD
Model 172.4
with code 510 (Audio 20 CD with 6-disc CD changer)
Model 172.4
with code 512 (COMAND APS with DVD changer)
Model 172.4
with code 814 (DVD changer)
Function requirements for DVD changer, general
- Circuit 30g ON
- Transport mode not active
The CD/DVD changer is operated using the following components: Audio/COMAND control panel (A40/9), buttons on the audio equipment.
DVD changer, general
The CD/DVD changer is integrated in the audio equipment and contains a magazine for up to six CDs or DVDs.
The CD/DVD changer enables the following function sequences to be performed:
- Load CD or DVD function sequence
- Eject CD or DVD function sequence

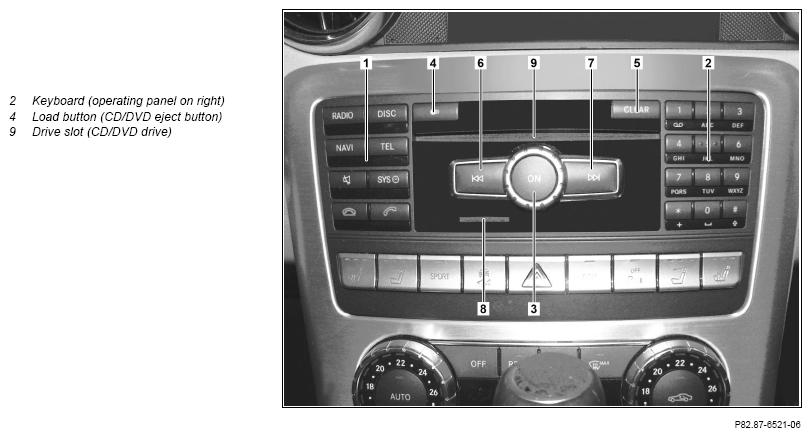

Shown: COMAND controller unit (A40/3) with code 512 (COMAND APS with DVD changer)
Load CD or DVD function sequence
When the Load button is pressed on the audio equipment, the "Cartridge menu" appears on the Audio/COMAND display (A40/8), including details on the last selected CD/DVD slot in the CD/DVD changer. The desired CD/DVD slot can be selected by turning or pressing the controls on the Audio/COMAND control panel to the left or right. Selection is confirmed by pressing vertically onto the Audio/COMAND control panel.
The desired CD/DVD slot can also be directly selected using the keypad (1 to 6) on the audio equipment.
A CD or DVD must not be inserted until the corresponding request to do so appears on the Audio/COMAND display, e.g. "Please insert Disc 2". After inserting the CD or DVD into the CD/DVD drive the Audio/COMAND display shows a message, e.g. "Disc 2 loading...".
The duration of the loading process can vary depending on the type of data storage device involved.
Once the CD or DVD is loaded, the display changes back to the "Cartridge menu". If no CD or DVD is inserted, the display also changes back to "Magazine menu" after 20 seconds. A loaded CD or DVD is shown in the "Cartridge menu".
The "Fill up empty spaces" menu enables several CDs or DVDs to be loaded one after the other. A CD or DVD may not be inserted until the corresponding request to do so appears on the Audio/COMAND display, e.g. "Please insert Disc 3". The "audio unit" then starts to load the empty CD/DVD slots.
The data exchange between the "audio equipment", the Audio/COMAND display and the Audio/COMAND control panel takes place via the telematics CAN (CAN A). Video signals are transmitted via a low voltage differential signaling (LVDS) line to the Audio/COMAND display.
Eject CD or DVD function sequence
After pressing the Load button on the audio equipment, the Audio/COMAND display shows the "Cartridge menu" including details on the last selected CD/DVD slot in the CD/DVD changer. The desired CD/DVD slot can be selected by turning or pressing the controls on the Audio/COMAND control panel to the left or right. Selection is confirmed by pressing vertically onto the Audio/COMAND control panel.
The desired CD/DVD slot can also be directly selected using the keypad (1 to 6) on the audio equipment.
While the CD or DVD is ejected, a message appears in the Audio/COMAND display (e.g. "Disk 2 being ejected..."). As soon as the CD or DVD appears in the CD/DVD drive slot, a corresponding message is shown (e.g. "Please remove disc 2").
Once the CD or DVD is removed, the display changes back to the "Magazine menu". If the CD or DVD is not removed, the CD or DVD is loaded again.
The "Eject all" menu enables all the loaded CDs or DVDs to be removed one after the other.
As soon as the CD or DVD appears in the CD/DVD drive slot, a corresponding message appears (e.g. "Please remove disc 3"). Once the CD or DVD is removed from the CD/DVD drive slot, the next CD or DVD is ejected until the entire CD/DVD cartridge is empty.
An ejected CD or DVD is shown in the "Cartridge menu" as an empty CD/DVD slot.
The eject procedure can be stopped at any time by pressing the load button on the audio equipment or the "Back" button (A40/9s2) of the Audio/COMAND control panel.
