Attach engine hoist - AR33.10-P-0105LF

MODEL 217 with ENGINE 157, 276, 278, 279

MODEL 222 with ENGINE 157, 276.8/9, 277, 278, 279

Shown on engine 278

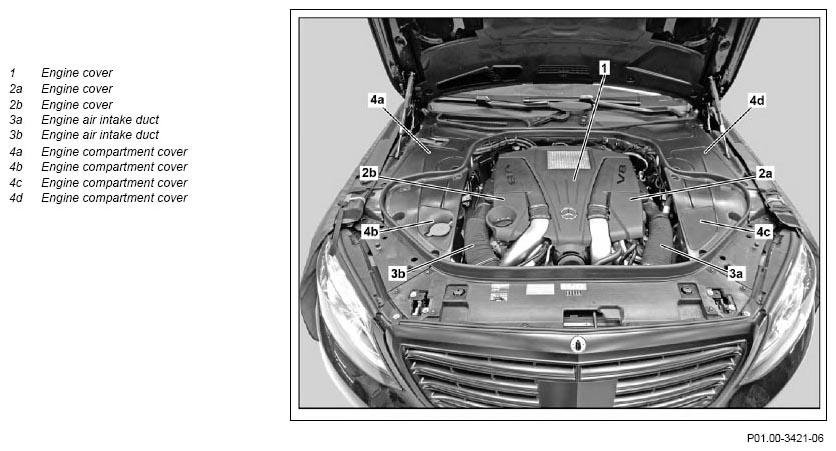

Fig 1: Engine Hoist Components - Shown On Engine 278 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

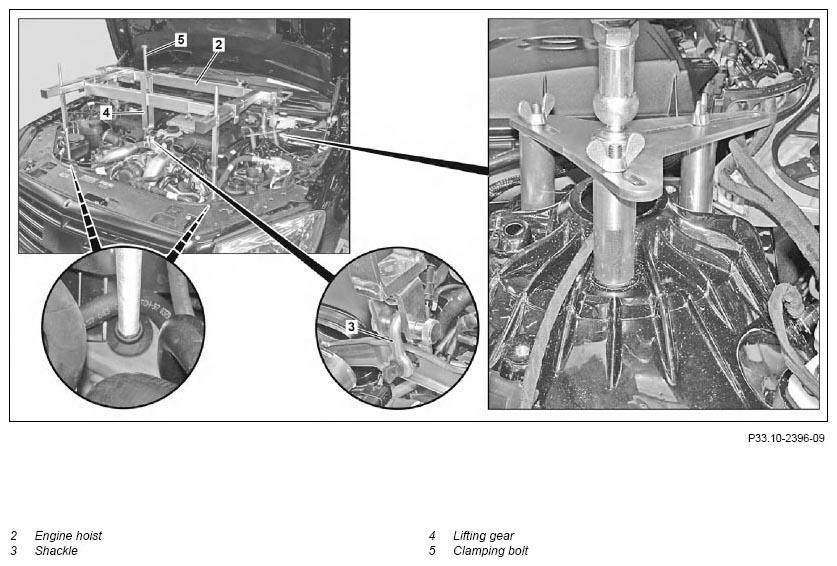

Fig 2: Engine Hoist Components - Shown On Engine 278 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on engine 277

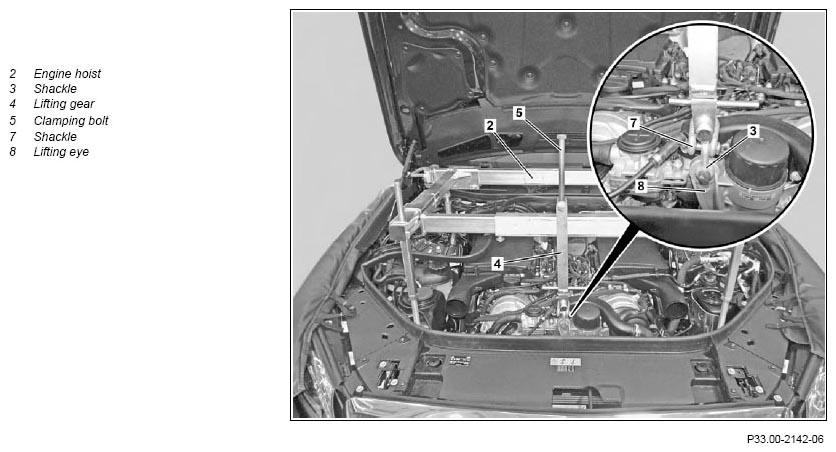

Fig 3: Engine Hoist Components - Shown On Engine 277

Courtesy of MERCEDES-BENZ USA

	Install/remove
1.1	Remove upper engine covers (1, 2a, 2b)	Model 217 with engine 157, 278 Model 222 with engine 157, 278
1.2	Remove front engine cover	Model 217 with engine 279 Model 222 with engine 276.9, 277, 279
2	Remove engine air intake ducts (3a, 3b)
3	Remove engine compartment covers (4a, 4b, 4c, 4d)
4	Remove air filter housing	Model 217, 222 with engine 157, 278 Model 222 with engine 276.9 Model 217, 222 with engine 157, 278	AR09.10-P-1150LFB
5	Detach coolant expansion reservoir and place it aside along with the connected lines		AR20.30-P-4950LF
6	Detach windshield washer system washer fluid reservoir and place to one side with lines still connected
7	Detach hydraulic fluid reservoir (ABC) and place to one side with lines still connected	Model 217 with engine 157, 278, 279 with code 487 (Active Body Control (ABC)) Model 222 with engine 157, 277, 278, 279 with code 487 (Active Body Control (ABC))	AR32.50-P-0022LF
8	Unclip cable duct from firewall and place to one side
9	Preassemble engine hoist (2)	Observe the manufacturer's assembly specifications and safety information. Engine lifting device	Fig 4
10	Mount preassembled engine hoist (2) on suspension strut towers and longitudinal member	Do not crush any lines and hoses in the area of the longitudinal member. Observe the manufacturer's assembly specifications and safety information.
11	Adjust engine hoist (2) and tighten bolted connections	Observe the manufacturer's assembly specifications and safety information.
12	Attach engine suspension lug to front of engine	Model 217 with engine 157, 278 Model 222 with engine 157, 278	AR33.10-P-0105-01SX
		Bolt, lifting eye to cylinder head	*BA01.30-P-1006-01X
		Lifting eye	Fig 5
13	Attach shackle (7) to lifting gear (4)	Model 217 with engine 279 Model 222 with engine 277, 279
14.1	Attach shackle (3) to front engine suspension lug	Model 217 with engine 157, 278 Model 222 with engine 157, 276.8/9, 278
14.2	Mount shackle (3) to shackle (7) and front lifting eye (8) to oil filter housing	Model 217 with engine 279 Model 222 with engine 277, 279
15	Tighten rigging screw (5) and tension hoist (4)
16	Remove in the reverse order

Fig 4: Identifying Engine Lifting Device (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Lifting Eye (278 589 00 40 00)

Courtesy of MERCEDES-BENZ USA
