Remove/install steering wheel - AR46.10-P-0100LF

MODEL 217, 222

MODIFICATION NOTES

09.05.2016

Installation instruction for right-hand drive vehicle added

Operation step 5

Shown on model 222

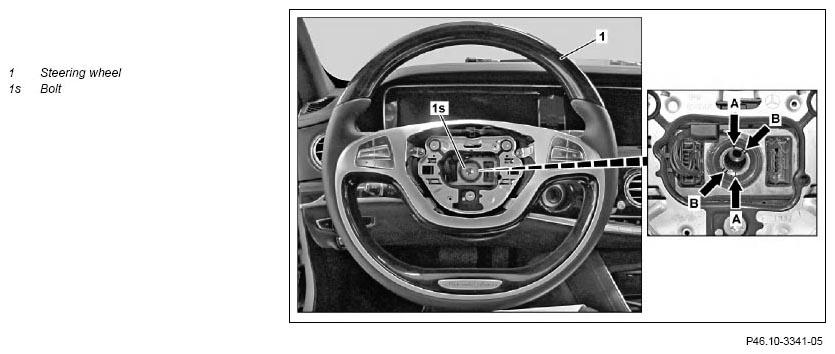

Fig 1: Steering Wheel Remove/Install Components - Shown On Model 222 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

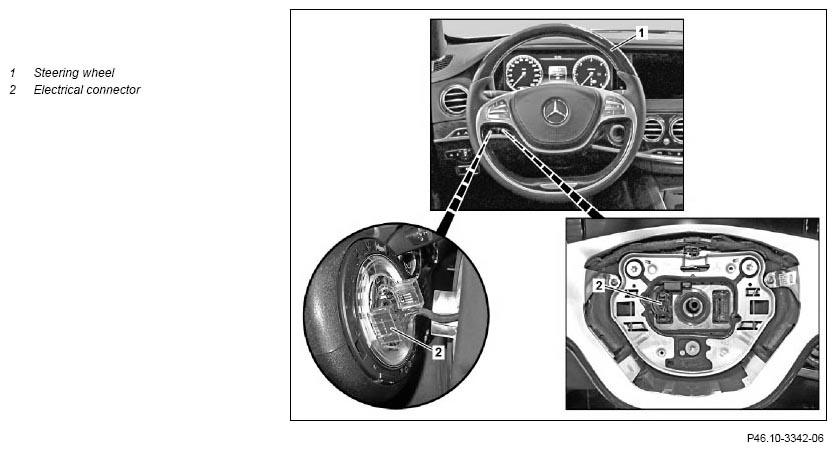

Fig 2: Steering Wheel Remove/Install Components - Shown On Model 222 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Turn steering wheel (1) into center position
2	Remove airbag unit from steering wheel (1)		AR91.60-P-0660LF
3	Remove bolt (1s), in the process counterhold the steering wheel (1)	Bolt, steering wheel to steering shaft	*BA46.10-P-1001-02J
4	Remove steering wheel (1) far enough until the electrical connection (2) is accessible and detach the electrical connection (2)
5	Remove steering wheel (1)	Align recesses of the splines (arrows A) in steering wheel (1) with markings on the steering shaft. Model 217.### 2#, 222.### 2# Installation:  If there are double line markings (arrows B) on the steering shaft, the recesses of the splines (arrows A) must be lined up with double line markings (arrows B).
6	Install in the reverse order

STEERING WHEEL

Number	Designation		Model 217	Model 222
BA46.10-P-1001-02J	Bolt, steering wheel to steering shaft	Nm	80	80
