Remove/install airbag unit on steering wheel - AR91.60-P-0660LF

MODEL 217, 222

Model 217, model 222 as of 31.05.2014, shown on model 217

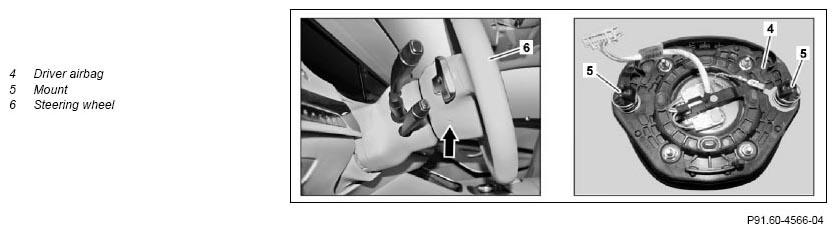

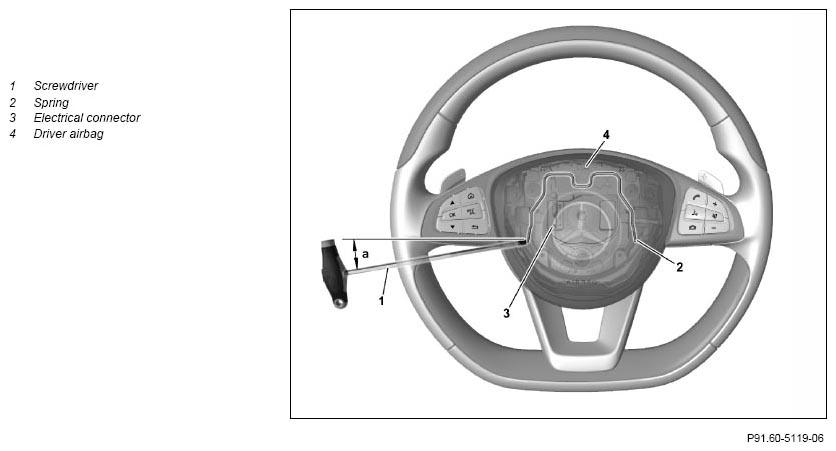

Fig 1: Steering Wheel Airbag Unit Remove/Install Components - Shown On Model 217

Courtesy of MERCEDES-BENZ USA

Model 222 up to 30.05.2014

Fig 2: Steering Wheel Airbag Unit Remove/Install Components - Shown On Model 222 up to 30.05.2014

Courtesy of MERCEDES-BENZ USA

Shown on model 222

Fig 3: Steering Wheel Airbag Unit Remove/Install Components - Shown On Model 222

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100 °C or 212 . Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Adjust steering wheel (6) to the topmost position
2	Disconnect ground line to battery		AR54.10-P-0003LF
3	Insert screwdriver (1) in right and left opening (arrow) at steering wheel (6) and press respective end of spring (2) inwards until driver airbag (4) is released	Model 217 Model 222 as of 5/31/14 Angle: a = approx. 10° Model 222 up to 5/30/14 Angle: b = approx. 45° Use commercially available Allen wrench with a size of 4 mm. Right and left opening (arrow) at steering wheel (6) must be pierced the first time that driver airbag (4) is removed. Ends of spring (2) must audibly engage in mounts (5) of driver airbag (4).
4	Remove driver airbag (4) and disconnect electrical connector (3)	Make sure that electrical connector (3) engages properly.
5	Dispose of removed driver airbag (4) properly	When replacing the driver airbag (4).
6	Install in the reverse order
7	Check supplemental restraint system (SRS) with diagnostic unit	When replacing the driver airbag (4).
			AD00.00-P-2000-04B
