Remove/install seal for side window on front door - AR72.10-P-1906LFS
MODEL 222
with CODE Z07 (Top protection)
with CODE Z11 (Left front power window with special protection)
with CODE Z12 (Right front power window with special protection)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove side window in front door | AR72.10-P-1961LFS | |
| 2 | Remove outside mirror completely | AR88.70-P-9000LFS | |
| 3 | Remove outside mirror seal from front door (6) | ||
| 4 | Position adhesive strip below both ends of outer sealing rail (4) and glue to door paneling | Adhesive strips protects painting. Otherwise the paint can be damaged when removing the outer sealing rail (4). |
|
| 5 | Remove outer sealing rail (4) | Carefully lift outer sealing rail (4) out of bead on door paneling. Otherwise the outer sealing rail (4) can bend and must be replaced. |
|

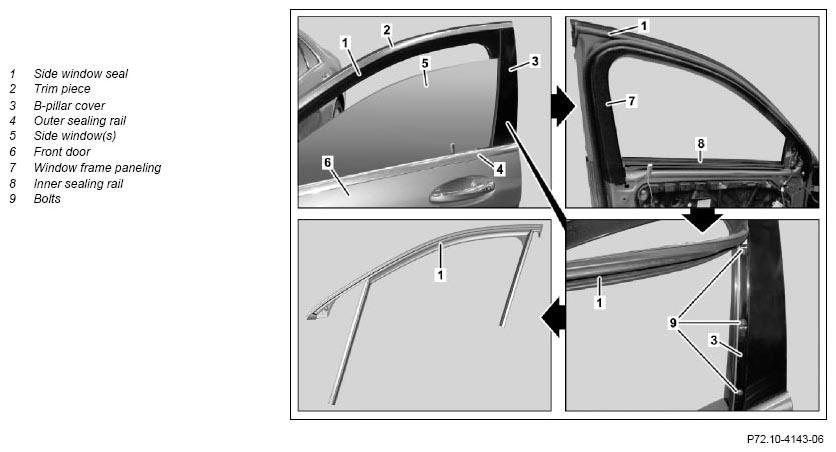

| Figure | |||
| 6 | Remove trim piece (2) | Carefully lift trim piece (2) out of side window seal (1). Otherwise the trim piece (2) can bend and must be replaced. |
|
| Figure | |||
| 7 | Remove window frame paneling (7) | ||
| 8 | Remove inner sealing rail (8) | Carefully lift inner sealing rail (8) out of bead on inner door panel. Otherwise the inner sealing rail (8) can deform and must be replaced. |
|
| Figure | |||
| 9 | Pull out side window seal (1) in area of B-pillar cover (3) | ||
| 10 | Pull out side window seal (1) in area of outer outside mirror | ||
| 11 | Unscrew bolts (9) from B-pillar cover (3) | ||
| 12 | Remove B-pillar cover (3) | ||
| 13 | Remove side window (1) from front door window frame (6) | Ensure that side window seal (1) is seated correctly. Otherwise leakage can occur. |
|
| 14 | Install in the reverse order |
